Random walks on graphs¶
A continuous-time random walk updates every graph edge simultaneously, whereas a circuit applies gates in an order. This notebook connects the two descriptions on an eight-node graph, using one PSWAP per edge in each graph sweep, and then carries the construction over to oriented edges with a directed PJUMP cycle. Refining the layer count separates the deterministic bias introduced by the ordered updates (Trotter splitting) from the random scatter caused by estimating occupancies with finitely many sampled walks (Monte Carlo noise). A symmetric forward-then-reverse Strang sweep squares the rate at which the splitting bias falls.
A random walk can be pictured as probability mass spreading along the edges of a graph. How can a gate-based circuit reproduce that simultaneous flow? We will express the walk as a parametrised stochastic circuit: one graph node is one pbit, each edge is one PSWAP gate, and a stack of Trotter layers approximates the graph heat flow.
Term: pbit
A pbit is a random binary 0/1 state. Its mean over repeated runs is an occupancy probability.
Term: Trotter and Strang splitting
Trotter splitting replaces simultaneous evolution by many small ordered edge updates. Strang splitting uses a forward-and-back symmetric edge order to cancel the leading splitting error.
This construction is possible because the graph Laplacian is a sum of edge terms. The continuous-time walk therefore separates into small two-node updates, and a single PSWAP gives the exact update for one edge. Repeating a layer that contains one PSWAP per edge then approximates the full walk.
We begin with one edge and its exact two-node Markov kernel (the transition rule for one step of the walk). We then compose an eight-node graph from a Trotter layer of PSWAP gates and watch its distribution diffuse. A resolution sweep separates Trotter bias from Monte Carlo noise; after that, we use a symmetric Strang sweep to square the convergence rate and transfer the same construction to directed edges with PJUMP.
We assume familiarity with the gate set from notebook 01, and the code uses Torx, JAX, NumPy, and NetworkX.
Setup¶
The setup cells put the shared helpers directory on the import path.
What runs where?
- Torx builds and samples the
PSWAPandPJUMPcircuits. - NumPy computes the generator, exact eigensolution, and deterministic product-formula baselines in
examples/helpers/_graph_diffusion.pyand this notebook. - JAX and Equinox compile, vectorize, and recombine per-source Torx runs inside
examples/helpers/_graph_diffusion.py. examples/helpers/_plots_sampling.pyandexamples/helpers/_plots_schematics.pydraw the figures.
from pathlib import Path
import sys
import jax
import jax.numpy as jnp
import networkx as nx
import numpy as np
from torx.psc import DiscretePCircuit, PSWAP, BranchingSimulator
# Resolve helper imports whether the notebook runs from the root or notebook directory.
ROOT = Path.cwd()
if not (ROOT / "helpers").exists() and (ROOT.parent / "helpers").exists():
ROOT = ROOT.parent
HELPER_DIR = ROOT / "helpers"
sys.path.insert(0, str(HELPER_DIR))
from jax.scipy.special import logit
from _notebook_paths import figure_dir
from _graph_diffusion import (
_edge_swap_probability as shared_edge_swap_probability,
build_graph_generator,
reference_heat_flow,
sample_pswap_product_formula,
sample_pswap_product_formula_multiseed,
)
import _plots_sampling as P_samp
import _plots_schematics as P_sch
from _notebook_style import (
apply_notebook_style,
make_savefig,
)
FIGURE_DIR = figure_dir(ROOT)
apply_notebook_style()
savefig = make_savefig(FIGURE_DIR)
What the circuit computes¶
Before writing any gates, we establish the correspondence between the graph walk and the circuit. Let $p(t)$ be the occupancy distribution at time $t$. It obeys the master equation (the rule for how the distribution changes over time) $\dot p = Qp$, whose exact solution is
$$ p(t) = e^{tQ}p_0. $$
For a symmetric graph walk, the generator (the matrix that drives the time evolution) is minus the graph Laplacian, $Q=-L$, where
$$ L \;=\; \sum_{\{i,j\} \in E} w_{ij}\,(e_i - e_j)(e_i - e_j)^\top, \qquad L\mathbf 1 = 0 $$
In the code below, every edge uses the same walk rate RATE, so $w_{ij} = \texttt{RATE}$ and $w_{ij}\,\Delta t = \texttt{RATE}\,\Delta t$ is the first-order term of the exact PSWAP probability.
The sum in $L$ assigns one local operator to each edge. We can therefore represent one slice of the heat flow $\dot p=-Lp$ by a circuit layer containing one PSWAP per edge:
$$ \underbrace{T}_{\vphantom{\big|}\text{Trotter layer}} \;=\; \prod_{\{i,j\} \in E} \mathrm{PSWAP}_{ij}(p_{ij}), \qquad \mathrm{PSWAP}_{ij}(p_{ij}) = \mathbb I - \underbrace{p_{ij}}_{\vphantom{\big|}\text{swap prob}}\,(e_i - e_j)(e_i - e_j)^\top $$
The product applies one two-node walk on every edge $\{i,j\}$. Its rank-one term $(e_i-e_j)(e_i-e_j)^\top$ is precisely the edge-local operator that appears in $L$, which is the bridge between the gate and the Laplacian description.
Each PSWAP is the exact edge propagator $e^{\Delta t\,Q_{ij}}$ on its edge, and the occupancy form $\mathbb I-p_{ij}(e_i-e_j)(e_i-e_j)^\top$ above is the single-walker map it induces. The approximation enters only when we apply the edge propagators in an order and repeat their product $N$ times:
$$ p(t) \;\approx\; \underbrace{\Big(\textstyle\prod_{\{i,j\}\in E} e^{\Delta t\,Q_{ij}}\Big)^{N}}_{\vphantom{\big|}\text{the circuit}} p_0 \;\xrightarrow[N\to\infty]{}\; \underbrace{e^{-Lt}\,p_0}_{\vphantom{\big|}\text{exact heat flow}}, \qquad \Delta t = t/N $$
The edge generators do not commute, so the ordered product equals $e^{-Lt}$ only in the limit. This is the classical Lie-Trotter product formula (Trotter 1959). Expanding one layer to first order gives $\mathbb I-\Delta t\,L$, the same update as one Euler step; the neglected terms produce the $1/N$ Trotter bias measured below.

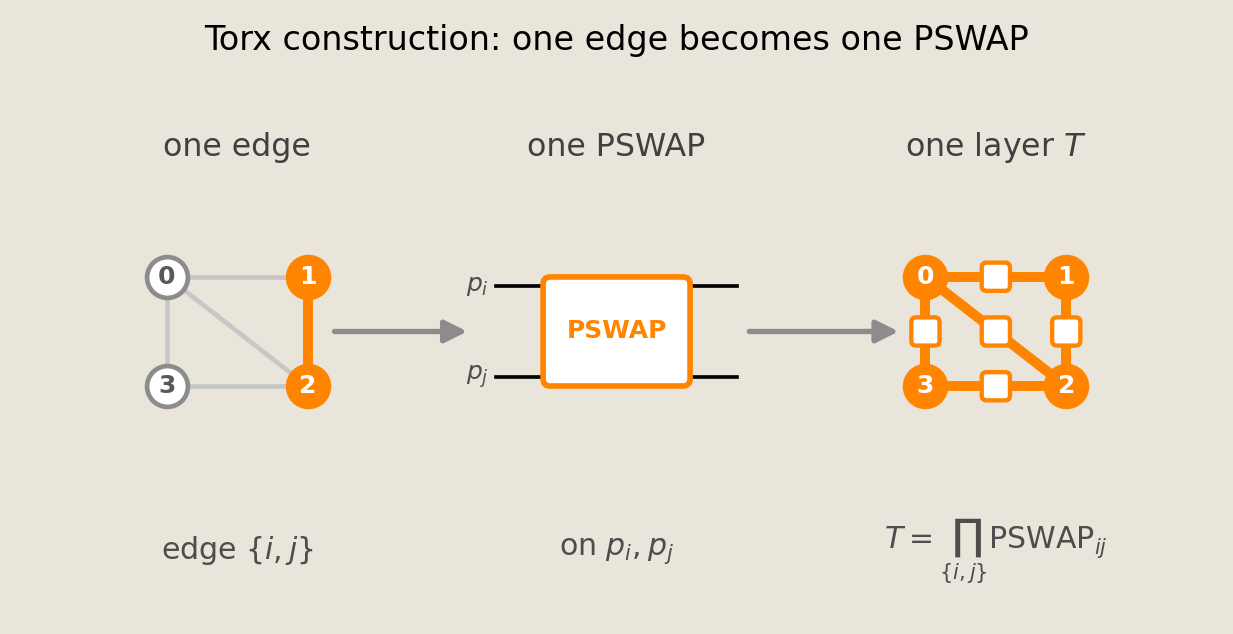

The schematic below gives that algebra a picture: it follows one highlighted edge from the graph to its PSWAP factor, then tiles the per-edge gates into one Trotter layer $T$. How those layers stack in time comes later, in the four-node ring circuit figure.
# A tiny toy graph just for the schematic (panel 1); the real 8-node graph
# is built in the "Building the graph" section below. Highlight one edge to carry through the decomposition.
toy_edges = [(0, 1), (1, 2), (2, 3), (3, 0), (0, 2)]
toy_pos = {0: (-0.9, 0.7), 1: (0.9, 0.7), 2: (0.9, -0.7), 3: (-0.9, -0.7)}
fig = P_sch.decomposition_schematic(
toy_edges=toy_edges,
toy_pos=toy_pos,
highlight_edge=(1, 2),
)
savefig(fig, "02_decomposition")
One edge, one PSWAP gate¶
We start with the smallest graph there is, two nodes joined by one edge, because the exact answer is available in closed form and the gate has nowhere to hide.
A walker at node 0 stays with probability $1-p$ and moves to node 1 with probability $p$. For a symmetric two-node walk at rate $r$ over a time $\Delta t$:
$$ p \;=\; \tfrac{1}{2}\bigl(1 - e^{-2r\,\Delta t}\bigr). $$
For the graph examples below, $r$ is the code constant RATE, so the first-order term $r\,\Delta t$ is the same $w_{ij}\,\Delta t$ from the Laplacian description.
That $p$ is the swap probability we feed to PSWAP, which is parametrised by a logit (the log-odds of the probability) rather than by the probability itself. The wrapper below evaluates it via the shared helper in examples/helpers/_graph_diffusion.py, so the sampled circuits and the deterministic baselines later in the notebook all read the same slice probability. For gate-set details, see 01_introduction_to_parametrised_stochastic_circuits.ipynb.
def edge_swap_probability(time, rate):
"""Shared symmetric two-node walk probability for one slice."""
return shared_edge_swap_probability(rate, time, 1)
Turning that formula into a circuit takes three short steps. First we fix a walk rate and an elapsed time, which together define the one-edge transition. Then we wrap a single PSWAP gate on two pbits into a circuit, since one edge needs exactly one gate. Finally we draw the circuit, which makes the two-pbit gate explicit on the wires instead of leaving it implied by the code.
RATE = 0.7
DEMO_TIME = 0.8
p_swap = edge_swap_probability(DEMO_TIME, RATE)
# Gates carry only structure (the two pbit sites); the swap logit lives in
# `thetas`, one entry per gate aligned with `circuit.gates`.
edge_circuit = DiscretePCircuit([PSWAP([0, 1])])
edge_thetas = [jnp.array([logit(p_swap)])]

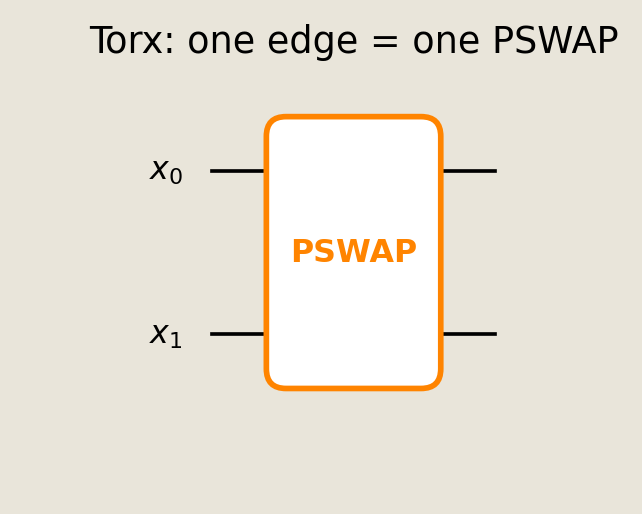

fig = P_sch.draw_pcircuit(
edge_circuit,
wire_labels=[r"$x_0$", r"$x_1$"],
title="Torx: one edge = one PSWAP",
)
savefig(fig, "02_edge_circuit")
With the circuit in place, we check the gate against the formula. We draw 20,000 samples, start the walker on node 0, and read out both endpoint occupancies, because the analytic two-node flow predicts those two numbers exactly.
EDGE_NUM_SAMPLES = 20_000
sim = BranchingSimulator(num_samples=EDGE_NUM_SAMPLES)
compiled = sim.build_circuit(edge_circuit, edge_thetas)
# Start the walker at node 0, then read out the two endpoint occupancies.
initial_bits = jnp.array([1, 0], dtype=jnp.int32)
sampled = np.asarray(sim.expval_all(compiled, initial_bits, jax.random.key(0)))
exact_endpoint = np.array([1.0 - p_swap, p_swap])
print(f"swap probability: {p_swap:.3f}")
print(f"exact occupancies: {np.round(exact_endpoint, 3).tolist()}")
print(f"Torx sampled occupancies: {np.round(sampled, 3).tolist()}")
swap probability: 0.337 exact occupancies: [0.663, 0.337] Torx sampled occupancies: [0.6620000004768372, 0.33799999952316284]
The sampled occupancies reproduce the analytic two-node flow, and the next cell states how close counts as agreement: within six times the binomial standard error $0.5/\sqrt{N}$ at $N = 20{,}000$ samples. That tolerance is the scale of the sampling scatter itself, so passing it means the remaining gap is noise from finite sampling rather than a wrong gate.
edge_sample_sigma = 0.5 / np.sqrt(EDGE_NUM_SAMPLES)
assert np.allclose(sampled, exact_endpoint, atol=6 * edge_sample_sigma)
Building the graph¶
We build the edge set from an eight-node cycle plus four chords across the middle.
The chords give the walker shortcuts across the ring, so the heat front spreads faster than it would on the cycle alone.
NUM_NODES = 8
cycle_edges = [(i, (i + 1) % NUM_NODES) for i in range(NUM_NODES)]
chord_edges = [(0, 4), (1, 5), (2, 6), (3, 7)]
edges = cycle_edges + chord_edges
We load most of the initial probability mass onto node 0 and its two ring neighbours, so the walk starts far from equilibrium and the spreading front has somewhere to spread from.
initial = np.zeros(NUM_NODES)
for node, mass in [(0, 0.70), (1, 0.20), (7, 0.10)]:
initial[node] = mass
initial /= initial.sum()
graph = nx.Graph()
graph.add_nodes_from(range(NUM_NODES))
graph.add_edges_from(edges)
# Fixed circular layout so every figure uses the same geometry.
angles = np.pi / 2 - 2.0 * np.pi * np.arange(NUM_NODES) / NUM_NODES
pos = {n: np.array([np.cos(a), np.sin(a)]) for n, a in enumerate(angles)}
assert graph.number_of_edges() == len(edges)
assert np.isclose(initial.sum(), 1.0)
Watching the walk diffuse¶
Before sampling the circuit, we compute the flow it is meant to reproduce. The reference is the exact heat flow $p(t)=e^{tQ}p_0$ with $Q=-L$. The helpers build_graph_generator and reference_heat_flow assemble $Q$ and evaluate this matrix exponential, so the panels below show a deterministic reference rather than a sampled estimate.
The initial state contains a peak much taller than any later value. A color scale spanning that peak would compress the variation in the remaining panels, so the figure clips its shared scale to roughly the 98th percentile of the post-initial snapshots. This keeps the later spread readable while allowing the $t=0$ peak to saturate the warm end; color comparisons among the later panels remain on the same scale.
TOTAL_TIME = 1.4
SNAPSHOT_TIMES = np.array([0.0, 0.35, 0.70, 1.05, 1.40])
generator = build_graph_generator(NUM_NODES, edges, rate=RATE)
snapshots = np.stack(
[reference_heat_flow(initial, generator, float(t)) for t in SNAPSHOT_TIMES]
)

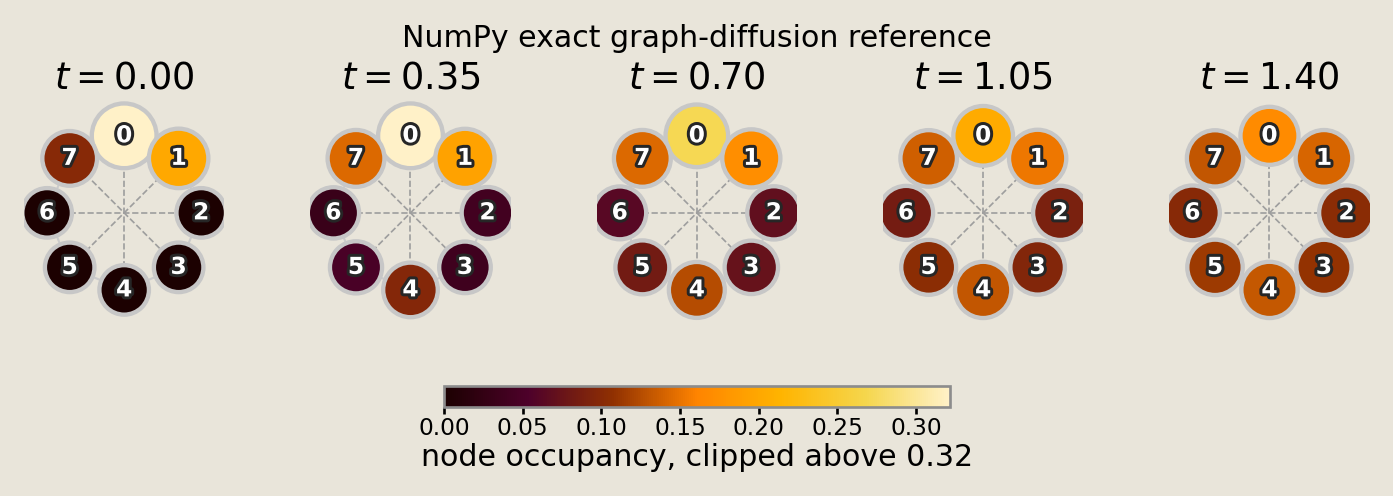

fig = P_sch.diffusion_progression_figure(
graph,
pos,
snapshots,
SNAPSHOT_TIMES,
cycle_edges=cycle_edges,
chord_edges=chord_edges,
)
savefig(fig, "02_diffusion_progression")
Mass leaves the hot nodes 0, 1, and 7 along both the cycle edges and the chord shortcuts, and by the last snapshot it has spread into the rest of the graph as the distribution approaches equilibrium.
Building the Torx circuit¶
We now build the circuit that approximates this reference flow. At Trotter resolution $m$, one layer applies a PSWAP to every edge using the swap probability for the slice duration $\Delta t=t/m$. Passing reps=m to Discrete repeats the complete edge layer $m$ times.
This repeated circuit is the product $T^m \approx e^{tQ}p_0$ introduced above. Increasing $m$ shortens each slice while keeping the total interval $t$ fixed.
STEPS = 16
dt = TOTAL_TIME / STEPS
p_per_layer = edge_swap_probability(dt, RATE)
pswap_layer = [PSWAP([int(i), int(j)]) for i, j in edges]
layer_thetas = [jnp.array([logit(p_per_layer)]) for _ in edges]
preview = DiscretePCircuit(pswap_layer, reps=STEPS)
print(f"{len(preview.gates)} PSWAP gates per layer x {preview.reps} layers")
print(f"swap probability per edge per slice: {p_per_layer:.4f}")
12 PSWAP gates per layer x 16 layers swap probability per edge per slice: 0.0576
The eight-node graph has twelve edges, so its layer contains twelve gates. That is too dense for a circuit diagram in which every wire and repeated gate remains easy to follow. The four-node ring below uses the same repeated-layer construction with fewer wires: each repetition applies one PSWAP per ring edge, and the repetition marker encodes the stack in time.
ring4 = [(0, 1), (1, 2), (2, 3), (3, 0)]
ring_layer = [PSWAP([int(i), int(j)]) for i, j in ring4]
layer_circuit = DiscretePCircuit(ring_layer, reps=8)

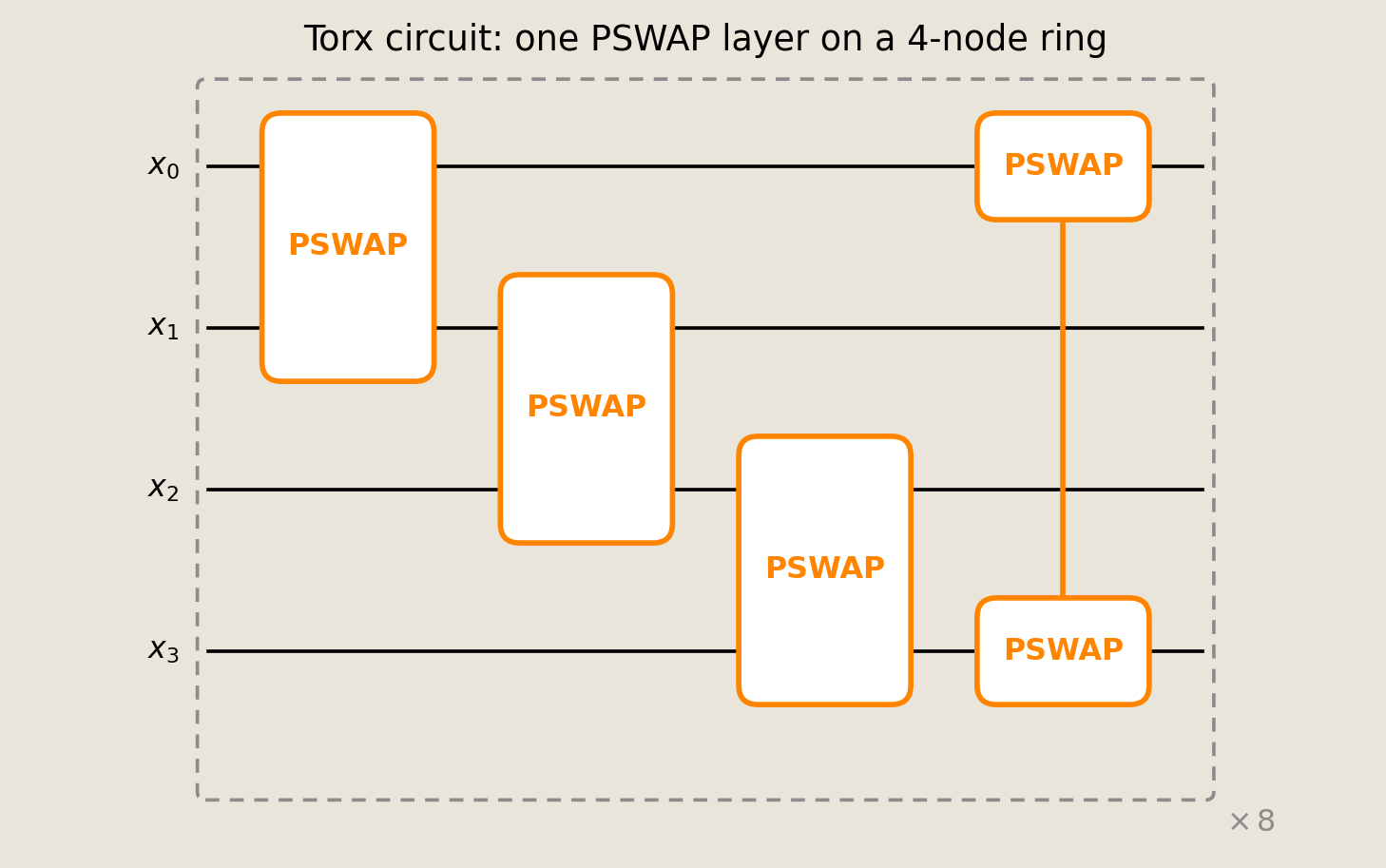

fig = P_sch.draw_pcircuit(
layer_circuit,
wire_labels=[rf"$x_{i}$" for i in range(4)],
title="Torx circuit: one PSWAP layer on a 4-node ring",
reps=layer_circuit.reps,
)
savefig(fig, "02_layer_circuit")
Sampling reads out where a single walker ends up, so one run can't represent a start spread across three nodes. The helper sample_pswap_product_formula handles that by running the circuit once per occupied source node and recombining the occupancies by the initial weights, which is valid because heat flow is linear in $p_0$.
Coarse and fine checks¶
Does the Trotter resolution visibly affect the approximation? We compare the same ordered edge layer at a coarse $m=2$ and a finer $m=32$. Only reps and the corresponding per-slice swap probability change; the graph, total time, rate, initial distribution, and sample count remain fixed. The exact $e^{tQ}p_0$ is the reference for both runs, and the printed $L_2$ errors measure the distance from that reference.
Term: L2 error
The $L_2$ norm is the Euclidean distance across all node occupancies. Zero means the two distributions agree at every node.
COARSE_STEPS = 2
FINE_STEPS = 32
NUM_SAMPLES = 12_000
exact = reference_heat_flow(initial, generator, TOTAL_TIME)
def run_circuit(initial, edges, *, steps, total_time, rate, num_samples, seed):
"""Estimate the first-order ordered product formula with the shared sampler."""
p = edge_swap_probability(total_time / steps, rate)
return sample_pswap_product_formula(
initial,
edges,
reps=int(steps),
swap_probability=p,
num_samples=num_samples,
seed=seed,
)
coarse = run_circuit(
initial,
edges,
steps=COARSE_STEPS,
total_time=TOTAL_TIME,
rate=RATE,
num_samples=NUM_SAMPLES,
seed=1,
)
fine = run_circuit(
initial,
edges,
steps=FINE_STEPS,
total_time=TOTAL_TIME,
rate=RATE,
num_samples=NUM_SAMPLES,
seed=2,
)
err_coarse = float(np.linalg.norm(coarse - exact))
err_fine = float(np.linalg.norm(fine - exact))
print(f"coarse (m={COARSE_STEPS:>2}) L2 error: {err_coarse:.3f}")
print(f"fine (m={FINE_STEPS:>2}) L2 error: {err_fine:.3f}")
coarse (m= 2) L2 error: 0.027 fine (m=32) L2 error: 0.009
Two things should hold here, and the next cell asserts them separately. Each estimate must still sum to one within twice the binomial standard error, because sampling redistributes probability without creating or destroying it. The finer run must also come out closer to exact than the coarse one at these fixed seeds, which is the first hint that the error at $m=2$ is dominated by the splitting rather than by the sample count.
mass_atol = 2 * 0.5 / np.sqrt(NUM_SAMPLES)
assert np.isclose(coarse.sum(), 1.0, atol=mass_atol)
assert np.isclose(fine.sum(), 1.0, atol=mass_atol)
assert err_fine < err_coarse
Trotter convergence¶

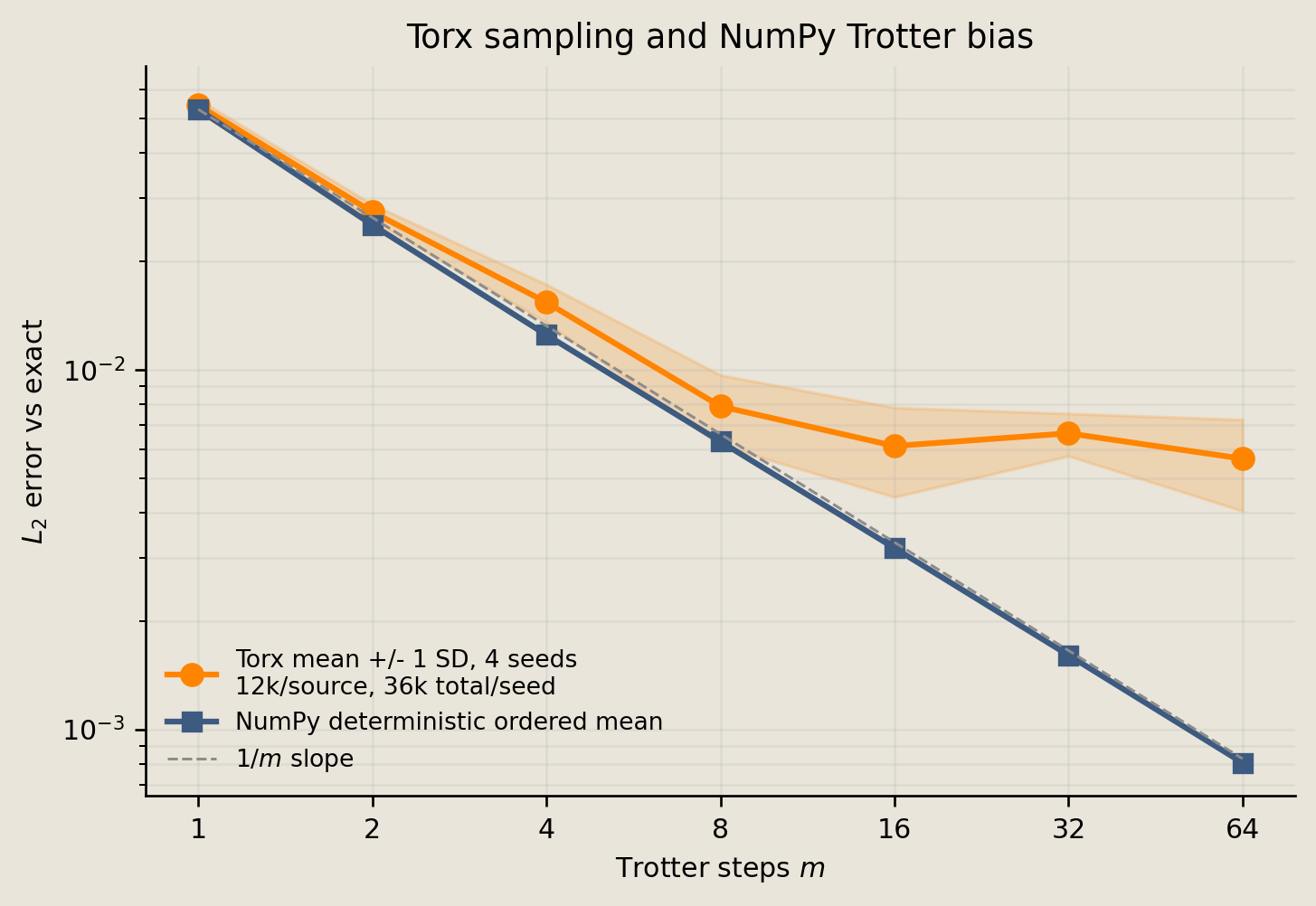

The coarse-and-fine comparison suggests that increasing $m$ helps, but a sampled estimate cannot improve indefinitely. Its measured error combines two contributions with different scaling:
- Trotter bias is the gap between the deterministic product formula and the exact $e^{tQ}p_0$. For first-order Trotter splitting, it falls as $1/m$, which appears as slope $-1$ on a log-log plot.
- Monte Carlo noise is the gap between the sampled estimate and the deterministic Trotter mean. By the central limit theorem, its scale is $O(1/\sqrt{N})$ in the sample count. It depends on the terminal probabilities, which vary with $m$, but is roughly flat here once the terminal distribution has stabilized.
To separate them, we compute the product formula twice. An exact matrix product over the ordered edges gives the deterministic bias with no sampling noise. Torx then estimates the same product formula using 12k trajectories per occupied source, or 36k total trajectories per seed, across four seeds. The plotted band is the sample standard deviation of those four seeds; it indicates their spread but is not a tight confidence interval.
STEPS_SWEEP = [1, 2, 4, 8, 16, 32, 64]
NUM_SEEDS = 4
The next three cells build that pure-bias baseline in NumPy. Each layer walks the edge list in order and applies the same two-by-two mixing the gate performs, so the result carries the ordering error with no sampling scatter on top of it.
def deterministic_trotter_step(occupancy, edge_list, swap_prob):
"""One deterministic edge-product-formula layer on a probability vector."""
out = occupancy.copy()
for i, j in edge_list:
a, b = out[i], out[j]
out[i] = (1.0 - swap_prob) * a + swap_prob * b
out[j] = swap_prob * a + (1.0 - swap_prob) * b
return out
def deterministic_trotter(p0, edge_list, *, m, total_time, rate):
"""Deterministic m-step product formula, no sampling."""
swap_prob = edge_swap_probability(total_time / m, rate)
# the edge update is linear, so it applies straight to p0 (no per-source split)
p = np.asarray(p0, dtype=float).copy()
for _ in range(m):
p = deterministic_trotter_step(p, edge_list, swap_prob)
return p
def sweep_trotter_errors(
initial,
edges,
exact,
*,
steps,
total_time,
rate,
num_samples,
num_seeds,
):
"""Return deterministic and per-seed sampled Trotter errors for each resolution in `steps`."""
det_errors = np.zeros(len(steps))
for i, m in enumerate(steps):
det = deterministic_trotter(
initial, edges, m=m, total_time=total_time, rate=rate
)
det_errors[i] = float(np.linalg.norm(det - exact))
sampled_errors = np.zeros((len(steps), num_seeds))
for i, m in enumerate(steps):
# compile once per resolution, then draw all seeds through it
p = edge_swap_probability(total_time / m, rate)
approx_per_seed = sample_pswap_product_formula_multiseed(
initial,
edges,
reps=int(m),
swap_probability=p,
num_samples=num_samples,
seeds=[100 + 7 * m + k for k in range(num_seeds)],
)
sampled_errors[i] = np.linalg.norm(approx_per_seed - exact, axis=1)
return det_errors, sampled_errors
det_errors, sampled_errors = sweep_trotter_errors(
initial,
edges,
exact,
steps=STEPS_SWEEP,
total_time=TOTAL_TIME,
rate=RATE,
num_samples=NUM_SAMPLES,
num_seeds=NUM_SEEDS,
)
steps_arr = np.asarray(STEPS_SWEEP)
sam_mean = sampled_errors.mean(axis=1)
sam_std = sampled_errors.std(axis=1, ddof=1)
Three claims follow from that two-error picture, and the next cell asserts each one on its own. The deterministic error has to fall at every refinement, because a larger $m$ means a shorter slice and the ordering error is all that is left to shrink. At the coarsest resolution $m=1$ the sampled error has to match the deterministic one within four binomial standard errors, because bias dominates so heavily there that the sampling scatter is invisible beside it. At the finest resolution $m=64$ the sampled error has to sit strictly above the deterministic one, which is the Monte Carlo noise floor described above showing up in the numbers: the bias has fallen below the scatter of a 12,000-sample estimate, so refining further no longer buys the sampled curve anything.
# Pure Trotter bias drops monotonically; the sampled curve plateaus at the MC floor.
mc_match_atol = 4 * 0.5 / np.sqrt(NUM_SAMPLES)
assert np.all(np.diff(det_errors) < 0)
assert abs(sam_mean[0] - det_errors[0]) < mc_match_atol
assert sam_mean[-1] > det_errors[-1]
fig = P_samp.trotter_error_figure(
steps_arr,
det_errors,
sam_mean,
sam_std,
num_samples=NUM_SAMPLES,
num_sources=int(np.count_nonzero(initial)),
num_seeds=NUM_SEEDS,
)
savefig(fig, "02_trotter_error")
At small $m$ the sampled and deterministic curves sit on top of each other, both following the $1/m$ Trotter slope. They separate once the Trotter bias drops below the Monte Carlo floor: the deterministic bias keeps falling as $1/m$, but the sampled error flattens at its $O(1/\sqrt{N})$ noise level.
Second-order splitting¶
Each PSWAP is the exact edge propagator $e^{Q_{ij}\Delta t}$, so a single edge carries no bias. The $1/m$ error above comes from ordering: the edge generators don't commute, so applying them one after another reproduces $e^{\sum_{ij} Q_{ij}\,\Delta t}$ only to first order in $\Delta t$.
A symmetric sweep removes the leading piece of that error. Run the edges forward for a half step and then in reverse for a half step, and the layer becomes its own mirror image, which cancels the leading $O(\Delta t^2)$ local splitting error from the non-commuting edge updates.
This is the classical Strang splitting (Strang 1968), the second-order case of the general higher-order product formulas (Suzuki 1976). The cancelled local term leaves a global bias that falls as $1/m^2$.
We write the symmetric layer out in NumPy first, so the order improvement shows up as a clean bias curve with no sampling noise in it. One Strang layer applies the same edge gates forward and then backward, each for half the slice time.
def deterministic_strang_step(occupancy, edge_list, reverse_edges, half_swap):
"""One symmetric layer: a forward edge sweep, then a reverse sweep, each a half step."""
out = deterministic_trotter_step(occupancy, edge_list, half_swap)
return deterministic_trotter_step(out, reverse_edges, half_swap)
def deterministic_strang(p0, edge_list, *, m, total_time, rate):
"""Deterministic m-step second-order product formula."""
half_swap = edge_swap_probability(total_time / m / 2, rate)
reverse_edges = list(reversed(edge_list))
# linear update applies straight to p0; reverse list built once, not per step
p = np.asarray(p0, dtype=float).copy()
for _ in range(m):
p = deterministic_strang_step(p, edge_list, reverse_edges, half_swap)
return p
strang_errors = np.array(
[
np.linalg.norm(
deterministic_strang(initial, edges, m=m, total_time=TOTAL_TIME, rate=RATE)
- exact
)
for m in STEPS_SWEEP
]
)
The same scheme runs in Torx, where a Strang layer is the forward edge list followed by its reverse, each gate carrying the half-step probability. We sample it once at the finest resolution $m=32$ to confirm that the circuit and the NumPy baseline describe the same scheme.
def run_strang_circuit(initial, edges, *, steps, total_time, rate, num_samples, seed):
"""Sampled second-order layer: forward edges then reversed, each a half step."""
half_p = edge_swap_probability(total_time / steps / 2, rate)
forward_edges = [(int(i), int(j)) for i, j in edges]
strang_edges = forward_edges + list(reversed(forward_edges))
return sample_pswap_product_formula(
initial,
strang_edges,
reps=int(steps),
swap_probability=half_p,
num_samples=num_samples,
seed=seed,
)
strang_sampled = run_strang_circuit(
initial,
edges,
steps=FINE_STEPS,
total_time=TOTAL_TIME,
rate=RATE,
num_samples=NUM_SAMPLES,
seed=7,
)
strang_sampled_err = float(np.linalg.norm(strang_sampled - exact))
print(f"Strang Torx circuit vs exact (m={FINE_STEPS}): L2 = {strang_sampled_err:.4f}")
# the sampled Strang circuit should track exact within the MC floor plus the tiny bias
strang_mc_tol = 6 * 0.5 / np.sqrt(NUM_SAMPLES)
assert strang_sampled_err < strang_errors[-1] + strang_mc_tol
Strang Torx circuit vs exact (m=32): L2 = 0.0059
We quantify the convergence order by fitting a line to log error versus log $m$ over the five finest resolutions. The fitted slopes are compared with their expected values, with 0.3 of slack: near $-1$ for the first-order product formula and near $-2$ for Strang. The next cell also requires Strang to have the smaller deterministic error at the finest resolution, connecting the steeper fitted slope to the accuracy of the final approximation.
lie_slope = np.polyfit(np.log(steps_arr[2:]), np.log(det_errors[2:]), 1)[0]
strang_slope = np.polyfit(np.log(steps_arr[2:]), np.log(strang_errors[2:]), 1)[0]
print(f"first-order slope {lie_slope:.2f} Strang slope {strang_slope:.2f}")
EXPECTED_LIE_SLOPE = -1.0
EXPECTED_STRANG_SLOPE = -2.0
SLOPE_FIT_TOLERANCE = 0.3
assert (
strang_errors[-1] < det_errors[-1]
), "Strang should be more accurate at the finest resolution"
assert (
abs(lie_slope - EXPECTED_LIE_SLOPE) < SLOPE_FIT_TOLERANCE
), "first-order bias should fall close to 1/m"
assert (
abs(strang_slope - EXPECTED_STRANG_SLOPE) < SLOPE_FIT_TOLERANCE
), "Strang bias should fall close to 1/m^2"
first-order slope -0.99 Strang slope -2.00

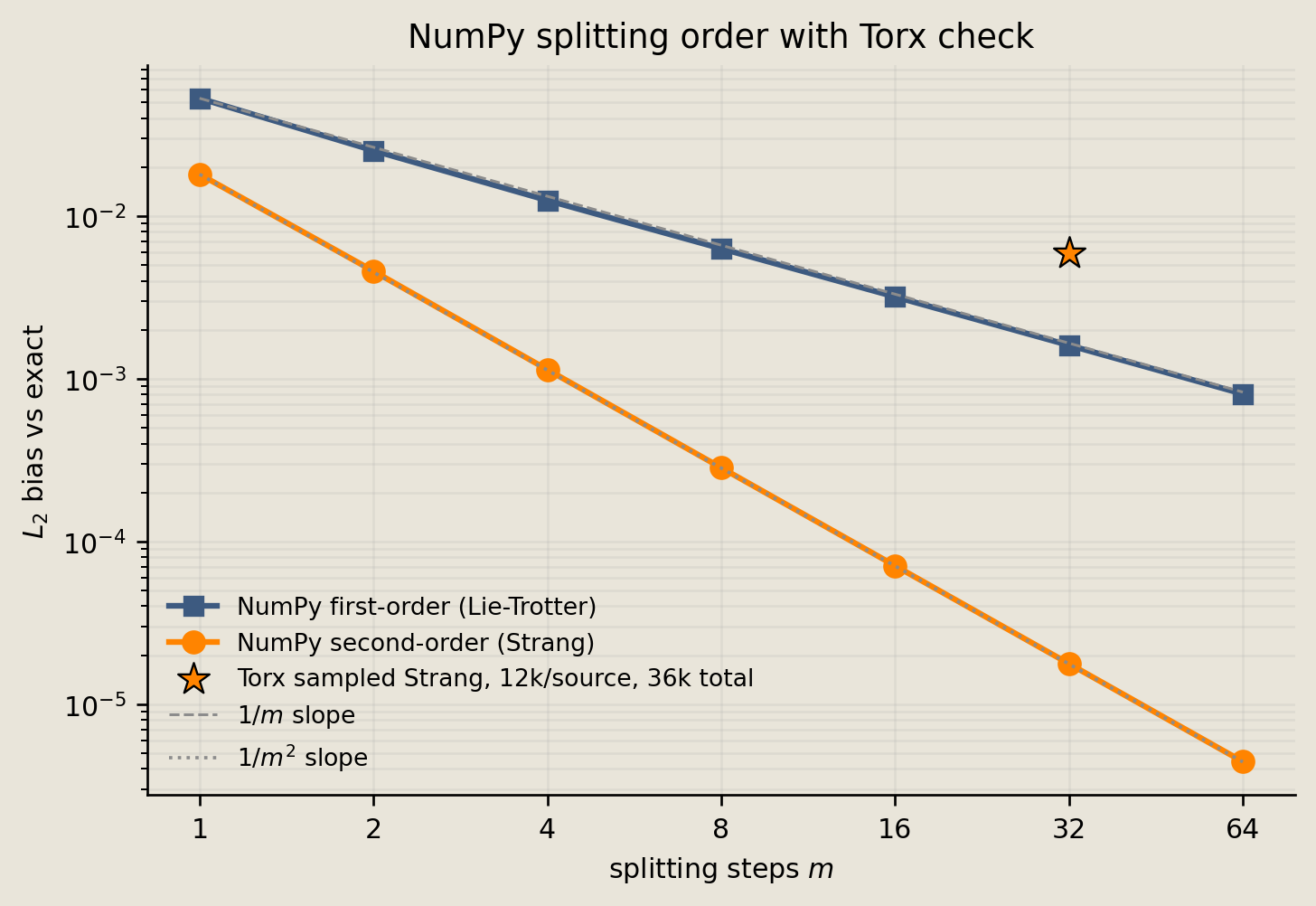

The following log-log plot places the two deterministic bias curves on the same axes. Their slopes encode the order of the methods: first-order Trotter follows $1/m$, while the symmetric Strang construction follows $1/m^2$.
fig = P_samp.splitting_order_figure(
steps_arr,
det_errors,
strang_errors,
torx_steps=FINE_STEPS,
torx_error=strang_sampled_err,
num_samples=NUM_SAMPLES,
num_sources=int(np.count_nonzero(initial)),
)
savefig(fig, "02_splitting_order")
The two NumPy curves follow the deterministic $1/m$ and $1/m^2$ bias rates. The single Torx marker is the sampled Strang result at $m=32$, so it can be compared with the deterministic second-order curve at the same resolution.
A symmetric Torx layer requires one additional edge sweep per step. This is a constant-factor cost, and it improves accuracy when splitting bias, rather than finite-sample noise, dominates the target error. Once the Monte Carlo floor is larger than the bias, increasing the splitting order cannot reduce the sampled error by itself.
Directed transport: the PJUMP gate¶
The PSWAP construction describes an undirected edge: probability can flow in either direction. For an oriented edge $a\to b$, Torx provides the PJUMP gate. At rate $r$ over a slice $\Delta t$, it moves a token from $a$ to $b$ with probability $p=1-e^{-r\,\Delta t}$. The gate fires only when the source is occupied and the destination is empty, $(a,b)=(1,0)$; every other pair is left unchanged.
Like PSWAP, PJUMP is parametrised by the logit $\theta=\log\!\big(p/(1-p)\big)$. The Trotter construction is otherwise unchanged: one PJUMP per directed edge forms a layer, and DiscretePCircuit(gates, reps=m) repeats it over $[0,t]$. We will apply this directed layer to a five-node cycle with two edge rates.
from torx.psc import PJUMP
# A short directed cycle: each node has exactly one out-edge, with two rates.
FAST, SLOW = 0.9, 0.4
n_nodes = 5
directed_edges = [
(0, 1, FAST),
(1, 2, FAST),
(2, 3, SLOW),
(3, 4, FAST),
(4, 0, SLOW),
]
def pjump_probability(time, rate):
"""Directed-edge jump probability over a slice; the token enters only an empty node."""
return 1.0 - np.exp(-rate * time)
# Single-particle generator Q: a token at src leaves to dst at the edge rate.
Q = np.zeros((n_nodes, n_nodes))
for src, dst, rate in directed_edges:
Q[dst, src] += rate
Q[src, src] -= rate
# One walker starts on node 0.
initial_bits = jnp.zeros(n_nodes, dtype=jnp.int32).at[0].set(1)
p0 = np.zeros(n_nodes)
p0[0] = 1.0
print(f"{n_nodes}-node directed cycle, {len(directed_edges)} directed edges, one walker on node 0")
5-node directed cycle, 5 directed edges, one walker on node 0
The directed gate now gets the same treatment the symmetric one received. We Trotterize with one PJUMP per directed edge, sample snapshot circuits at a few rep counts, and compare each sampled occupancy against the exact single-particle reference $e^{Q t} p_0$, which comes from an eigendecomposition of $Q$ rather than from sampling.
def single_particle_occupancy(Q, p0, times):
"""Exact occupancy e^(Q t) p0 for the small real directed generator."""
vals, vecs = np.linalg.eig(Q)
coeff = np.linalg.solve(vecs, p0)
return np.stack([(vecs @ (np.exp(vals * t) * coeff)).real for t in times])
T = 6.0
N = 300
dt = T / N
times = np.linspace(0.0, T, N + 1)
snapshot_reps = np.arange(60, N + 1, 60, dtype=int)
snapshot_times = snapshot_reps * dt
exact_occ = single_particle_occupancy(Q, p0, times)
gates = [PJUMP([int(src), int(dst)]) for src, dst, rate in directed_edges]
thetas = [jnp.array([logit(pjump_probability(dt, rate))]) for src, dst, rate in directed_edges]
sim = BranchingSimulator(num_samples=20_000)
keys = jax.random.split(jax.random.key(0), len(snapshot_reps))
torx_occ = np.stack([
np.asarray(sim.expval_all(sim.build_circuit(DiscretePCircuit(gates, reps=int(reps)), thetas), initial_bits, key))
for reps, key in zip(snapshot_reps, keys, strict=True)
])
err = float(np.max(np.abs(torx_occ - exact_occ[snapshot_reps])))
print(f"sampled {len(snapshot_reps)} snapshot circuits at reps {snapshot_reps.tolist()}")
print(f"max |Torx - exact| occupancy: {err:.4f}")
assert err < 0.05
assert np.allclose(torx_occ.sum(axis=1), 1.0, atol=5e-3)
sampled 5 snapshot circuits at reps [60, 120, 180, 240, 300] max |Torx - exact| occupancy: 0.0074
Across the five snapshots, the maximum occupancy difference is below 0.05, and every sampled distribution sums to one within $5\times10^{-3}$. These checks show that the sampled circuit follows the exact directed flow at the scale of the sampling scatter. The figure below makes the comparison node by node: continuous lines show the NumPy reference, and dots show the Torx means from 20k samples.
import matplotlib.pyplot as plt
from _notebook_style import FIGURE_BG
fig, ax = plt.subplots(figsize=(6.2, 4.2))
for node in range(n_nodes):
line, = ax.plot(times, exact_occ[:, node], lw=2.0, label=f"node {node}")
ax.scatter(
snapshot_times, torx_occ[:, node], color=line.get_color(),
s=34, edgecolor=FIGURE_BG, linewidth=0.8, zorder=5,
)
ax.plot([], [], color="0.25", lw=2.0, label="line: NumPy exact reference")
ax.scatter([], [], color="0.25", s=34, label="dot: Torx mean, 20k samples")
ax.set_xlabel("time")
ax.set_ylabel("occupancy probability")
ax.set_title("Directed walk: one PJUMP per edge")
ax.set_ylim(-0.05, 1.05)
ax.legend(loc="upper right", frameon=False, ncol=2)
fig.tight_layout()
savefig(fig, "02_directed_transport")

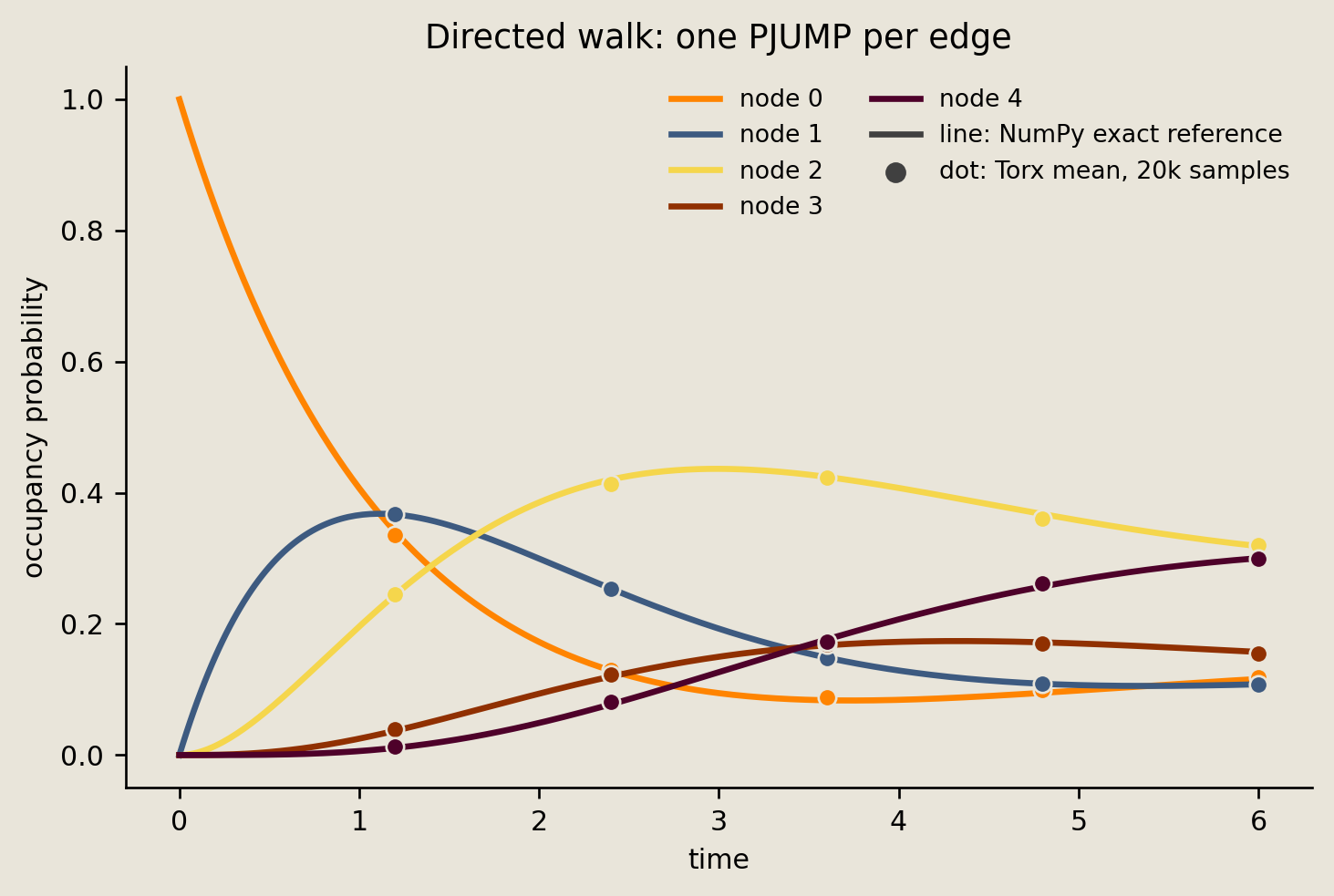

The Torx dots track the NumPy exact lines. With a single walker the destination node is always empty, so the jumps are an ordinary directed random walk. Add more walkers and the empty-target condition becomes binding: a token can't hop onto an occupied node, so the walkers exclude one another. That turns the graph into an exclusion process: the directed, multi-walker analogue of the symmetric walk studied in this tutorial.
Conclusion¶
We represented a continuous-time random walk on a graph as a circuit with one pbit per node and one edge-local gate per graph edge. The comparison with exact heat flow shows both where the construction is exact and where approximation enters:
- Each edge becomes one
PSWAPgate, and theDiscreteconstructor withPCircuit reps=mrepeats that layer over the time interval. - The
expval_allmethod ofBranchingreads out node occupancies, recovering the spreading heat front across the eight-node graph.Simulator - Refining the Trotter resolution drives the deterministic product formula toward the exact $e^{tQ}p_0$, with bias falling as $1/m$.
- Reordering the same edge gates into a symmetric Strang sweep squares the convergence rate, reducing the bias as $1/m^2$.
- Replacing undirected
PSWAPgates with directedPJUMPgates carries the layer construction to oriented edges, where the sampled walk follows the exact directed flow $e^{Qt}p_0$. - The same pattern—decompose a Laplacian into edge terms, then repeat the corresponding gate layer—extends from this graph to the mesh in
03_bunny_graph_diffusion.ipynb.
References¶
- Strang, G. 1968. On the construction and comparison of difference schemes. SIAM J. Numer. Anal. 5(3), 506-517. The symmetric second-order splitting used in the second-order section.
- Trotter, H.F. 1959. On the product of semi-groups of operators. Proc. Amer. Math. Soc. 10(4), 545-551. The first-order product formula underlying the per-edge Trotter layer.
- Suzuki, M. 1976. Generalized Trotter's formula and systematic approximants of exponential operators…. Commun. Math. Phys. 51(2), 183-190. The generalized higher-order product formulas that the symmetric Strang sweep is the second-order case of.
