Pmode Gaussian gates¶
We propagate a pmode's mean and covariance exactly through affine Gaussian stacks, while Mixture introduces discrete control and a non-Gaussian density. We check the gates three ways: sampled point clouds, exact moment propagation, and closed-form conditioning.
In this tutorial we build Torx's continuous pmode gate set and examine it in three ways: sampled point clouds, exact moment propagation, and closed-form conditioning.
The pmode is Torx's continuous data primitive, and every gate in this tutorial acts on pmode sites. A site takes a value in $\mathbb{R}^N$. If its distribution is Gaussian, how much of that distribution must we carry through the circuit?
A Gaussian is fixed by its first two moments, so it is enough to track the mean and covariance. The general Affine applies a linear map to a point, adds a bias, and adds Gaussian noise. The specialized gates Displace, Scale, Mix, and Diffuse fix some of those parameters to cover common choices.
Because a Gaussian remains Gaussian under each of these maps, every gate can update the two moments directly; we do not need to carry the density itself through the circuit.
By the end, you'll be able to:
- build the gate set and watch each gate deform a point cloud,
- propagate moments exactly with
Affineand check them against Monte Carlo samples,Gaussian Simulator - condition the joint distribution on one site in closed form, and
- use
Mixturewith a discrete control to leave the Gaussian family.Gaussian Gate
These same primitives drive the linear-Gaussian state-space model (SSM) of 11_gaussian_hierarchical_ssm.ipynb and the regime-switching diffusion process of 13_regime_switching_diffusion.ipynb. On the same continuous pmode site, 12_langevin_graph_ising.ipynb builds a custom nonlinear Langevin gate.
Setup¶
We import Torx, JAX, and the notebook plotting helpers, then apply the shared figure style so every figure below reads on the same palette.
The specialized gates Displace, Scale, Mix, and Diffuse are public torx.psc gates, so we import them here alongside the general Affine instead of assembling them by hand.
What runs where?
- Torx gates sample, propagate moments, and compute the exact point-conditioned posterior.
- Notebook code builds circuits, runs Monte Carlo checks, and selects the finite sample band.
examples/helpers/_plots_fields.py,examples/helpers/_plots_sampling.py, andexamples/helpers/_plots_schematics.pyrender figures. The fields helper also evaluates the displayed mixture PDF.examples/helpers/_notebook_paths.pyandexamples/helpers/_notebook_style.pymanage offline figure paths and style.
from pathlib import Path
import sys
import equinox as eqx
import jax
import jax.numpy as jnp
import numpy as np
ROOT = Path.cwd()
if not (ROOT / "helpers").exists() and (ROOT.parent / "helpers").exists():
ROOT = ROOT.parent
HELPER_DIR = ROOT / "helpers"
sys.path.insert(0, str(HELPER_DIR))
from _notebook_paths import figure_dir
from _notebook_style import apply_notebook_style, make_savefig
import _plots_schematics as P_sch
import _plots_fields as P_fld
import _plots_sampling as P_samp
from torx.psc import (
AffineGaussianGate,
AffineGaussianSimulator,
Diffuse,
Displace,
HybridPCircuit,
Mix,
MixtureGaussianGate,
PditShift,
Scale,
)
apply_notebook_style()
FIGURE_DIR = figure_dir(ROOT)
SEED = 12
savefig = make_savefig(FIGURE_DIR)
Every check in this tutorial has the same shape: push a cloud of points through a gate, then compare the sampled mean and covariance against the analytic prediction. The helpers below do that work once so the gate cells stay short.
def _sample_gate_cloud(gate, theta, cloud, seed):
"""Sample one continuous gate over a point cloud (vmapped)."""
cloud_j = jnp.asarray(cloud, dtype=jnp.float32)
keys = jax.random.split(jax.random.key(seed), cloud_j.shape[0])
out = _sample_gate_cloud_jit(gate, theta, cloud_j, keys)
return np.asarray(out)
@eqx.filter_jit
def _sample_gate_cloud_jit(gate, theta, cloud_j, keys):
"""Push every point of `cloud_j` through one gate sample, batched under jit."""
no_control = jnp.array([], dtype=jnp.int32)
def sample_one(x, key):
return gate.sample(key, {"discrete": no_control, "continuous": x}, theta)
return jax.vmap(sample_one)(cloud_j, keys)
def _mean_cov(points):
"""Sample mean and covariance of a point cloud."""
return points.mean(axis=0), np.cov(points, rowvar=False)
def _assert_mean_cov_close(
points, expected_mean, expected_cov, label, *, mean_atol=0.08, cov_atol=0.12
):
"""Check sampled moments against analytic ones and fail loudly past tolerance."""
mean, cov = _mean_cov(points)
mean_err = float(np.max(np.abs(mean - expected_mean)))
cov_err = float(np.max(np.abs(cov - expected_cov)))
print(f"{label}: mean err {mean_err:.4f}, cov err {cov_err:.4f}")
if mean_err >= mean_atol:
raise AssertionError(f"{label} mean error {mean_err:.4f} >= {mean_atol}")
if cov_err >= cov_atol:
raise AssertionError(f"{label} covariance error {cov_err:.4f} >= {cov_atol}")
def _sample_site0_gate(gate, theta, cloud, seed):
"""Sample a scalar continuous gate on site 0 and splice it back into a 2D cloud."""
next_cloud = cloud.copy()
next_cloud[:, 0] = _sample_gate_cloud(gate, theta, cloud[:, :1], seed)[:, 0]
return next_cloud
The gate set¶
We start with the one gate that contains all the others. Affine maps a point $x$ to a new point $x'$:
$$ x' = \underbrace{M x}_{\vphantom{\big|}\text{linear map}} + \mathbf{d} + \varepsilon, $$
where $\mathbf{d}$ is the bias displacement and $\varepsilon \sim \mathcal{N}(0,\, \Delta)$ is diagonal Gaussian noise. In code, the linear map $M$ and bias $\mathbf{d}$ are the A and b keys of the gate's theta, and $\Delta = \operatorname{diag}(\exp(\texttt{log_var}))$.
A Gaussian input remains Gaussian under this map, so the gate can update the mean and covariance directly, using the standard Gaussian identities collected by Petersen and Pedersen (2012):
$$ \mu \mapsto M\mu + \mathbf{d}, \qquad \Sigma \mapsto \underbrace{M\Sigma M^\top}_{\vphantom{\big|}\text{covariance}} + \Delta . $$
The mean transforms affinely, and because the gate's own noise is diagonal, the noise covariance $\Delta$ adds straight into $\Sigma$ without correlating anything. Correlations arrive through the other term instead: the linear map folds the whole input covariance through $M\Sigma M^\top$, so composing gates can correlate coordinates that started out independent.
Gates compose by the affine composition law:
$$ (M_2, \mathbf{d}_2, \Delta_2) \circ (M_1, \mathbf{d}_1, \Delta_1) = (M_2 M_1,\ M_2 \mathbf{d}_1 + \mathbf{d}_2,\ M_2 \Delta_1 M_2^\top + \Delta_2), $$
so a stack of gates is itself one affine Gaussian map. The named gates choose specific parameters:
| Gate | $M$ | $\mathbf{d}$ | $\Delta$ | Action |
|---|---|---|---|---|
Affine |
any | any | diag | general affine map and diagonal noise |
Displace ($\theta = \alpha$) |
$I$ | $\alpha$ | $0$ | shift |
Scale ($\theta = r$) |
$\mathrm{diag}(e^r)$ | $0$ | $0$ | exponential scale |
Mix ($\theta$) |
$R(\theta)$ | $0$ | $0$ | rotate two sites |
Diffuse ($\theta = \log(2 D\, dt)$) |
$I$ | $0$ | $2 D\, dt\, I$ | Brownian diffusion, following Einstein (1905) |
Three of those four are deterministic affine-Gaussian channels that add no noise at all: Displace, Scale, and Mix. Diffuse is the one additive Brownian-noise channel. All four are public torx.psc gates that specialize Affine.
To exercise the general gate we need parameters that no single specialized gate produces, so the next example uses a shear-rotation with anisotropic diagonal noise, meaning the spread differs by direction.
theta_rad = 0.20
c_, s_ = np.cos(theta_rad), np.sin(theta_rad)
# Compose a small rotation with a shear to make a nontrivial linear map.
A_demo = (np.array([[c_, -s_], [s_, c_]]) @ np.array([[1.0, 0.40], [0.0, 1.0]])).astype(
np.float32
)
b_demo = np.array([0.05, -0.10], dtype=np.float32)
log_var_demo = np.array([np.log(0.02), np.log(0.20)], dtype=np.float32)
var_demo = np.exp(log_var_demo)
affine_demo = AffineGaussianGate(sites=[0, 1], dims=(1, 1))
affine_demo_theta = {
"A": jnp.asarray(A_demo),
"b": jnp.asarray(b_demo),
"log_var": jnp.asarray(log_var_demo),
}
We now sample that gate over a standard-normal input cloud, which lets us see the deformation and check the sampled moments against the analytic ones at the same time.
rng_demo = np.random.default_rng(SEED + 99)
in_cloud = rng_demo.standard_normal((1500, 2)).astype(np.float32)
out_cloud = _sample_gate_cloud(affine_demo, affine_demo_theta, in_cloud, SEED + 1000)
in_mean, in_cov = _mean_cov(in_cloud)
expected_mean = A_demo @ in_mean + b_demo
# The analytic covariance is the pushed-forward input covariance plus gate noise.
expected_cov = A_demo @ in_cov @ A_demo.T + np.diag(var_demo)
_assert_mean_cov_close(
out_cloud, expected_mean, expected_cov, "AffineGaussianGate sample"
)
AffineGaussianGate sample: mean err 0.0223, cov err 0.0486
fig = P_fld.affine_general_clouds(
in_cloud, out_cloud, expected_mean, expected_cov, figsize=(6.2, 3.1)
)
savefig(fig, "10_affine_gaussian_general")

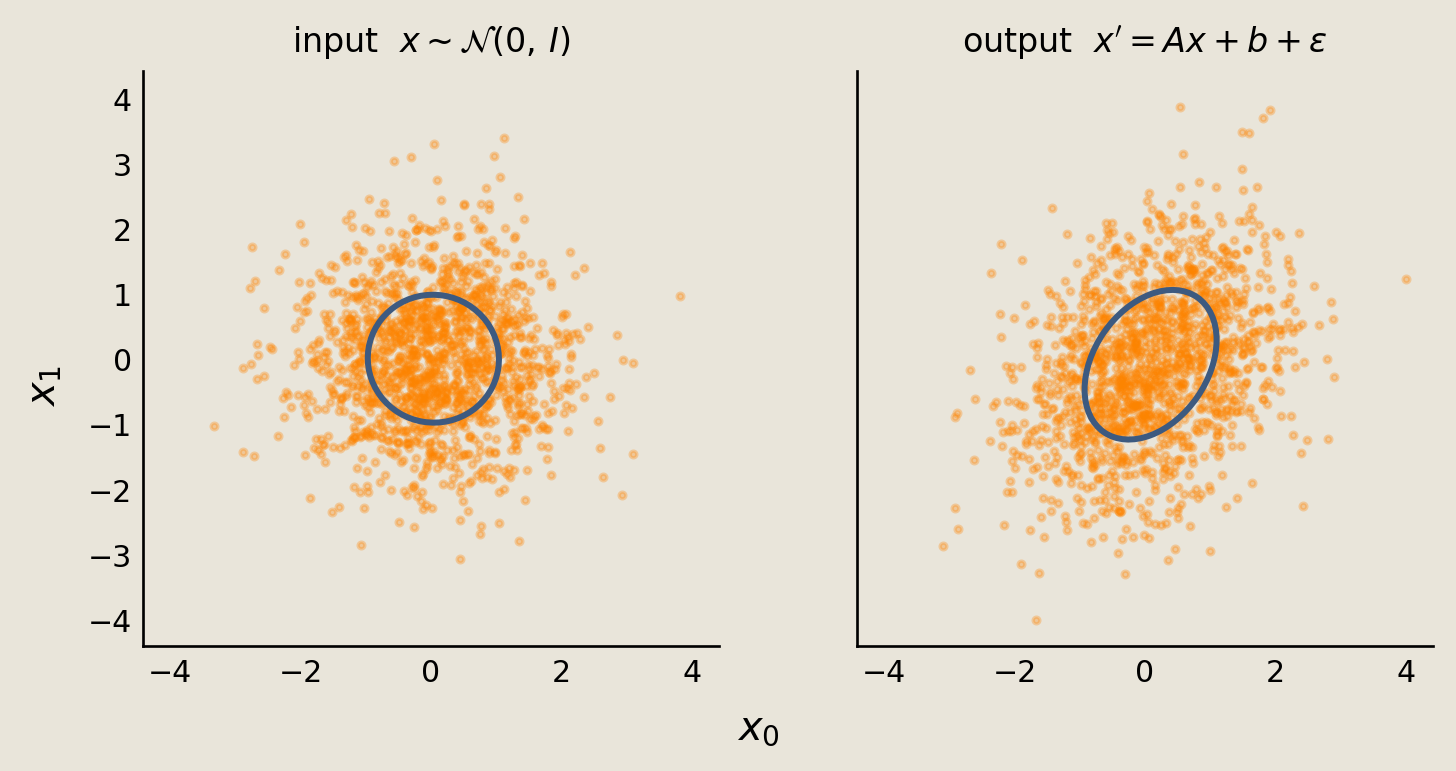

The outlined ellipse on each panel, drawn in the slate blue this gallery reserves for exact results, is a Mahalanobis-radius-1 contour of the analytic covariance. For a two-dimensional Gaussian it encloses about 39% of the probability, not the 68% associated with a one-dimensional one-standard-deviation interval. The orange samples fill it as predicted, following the shear-rotation and the anisotropic spread.
Now we build a stack from the named constructors, which make the common affine Gaussian transformations explicit. Each gate stores only the sites it acts on, and its numeric parameters live in separate theta arrays, so structure and values stay independent. A Hybrid then composes the four gates into one layer that repeats four times.
dt = 0.4
# Structure-only public gates; their parameters live in theta arrays.
diff_gate = Diffuse(sites=0, dims=(1,))
disp_gate = Displace(sites=0, dims=(1,))
scale_gate = Scale(sites=0, dims=(1,))
mix_gate = Mix(sites=[0, 1], dims=(1, 1))
diff_theta_stack = jnp.log(jnp.array([2.0 * 0.25 * dt])) # log-variance log(2 D dt)
disp_theta_stack = jnp.array([0.17]) # displacement b
scale_theta_stack = jnp.log(jnp.array([1.10])) # log-scale
mix_angle_stack = jnp.asarray(0.35) # rotation angle
step = HybridPCircuit(
[diff_gate, disp_gate, scale_gate, mix_gate],
reps=4,
)
# Per-gate parameters, aligned with step.gates.
step_thetas = [diff_theta_stack, disp_theta_stack, scale_theta_stack, mix_angle_stack]
fig = P_sch.draw_pcircuit(
[("Diffuse", [0]), ("Displace", [0]), ("Scale", [0]), ("Mix", [0, 1])],
wire_labels=[r"$x_0$", r"$x_1$"],
title="One affine Gaussian layer",
reps=4,
figsize=(6.2, 2.2),
)
savefig(fig, "10_pmode_layer_circuit")

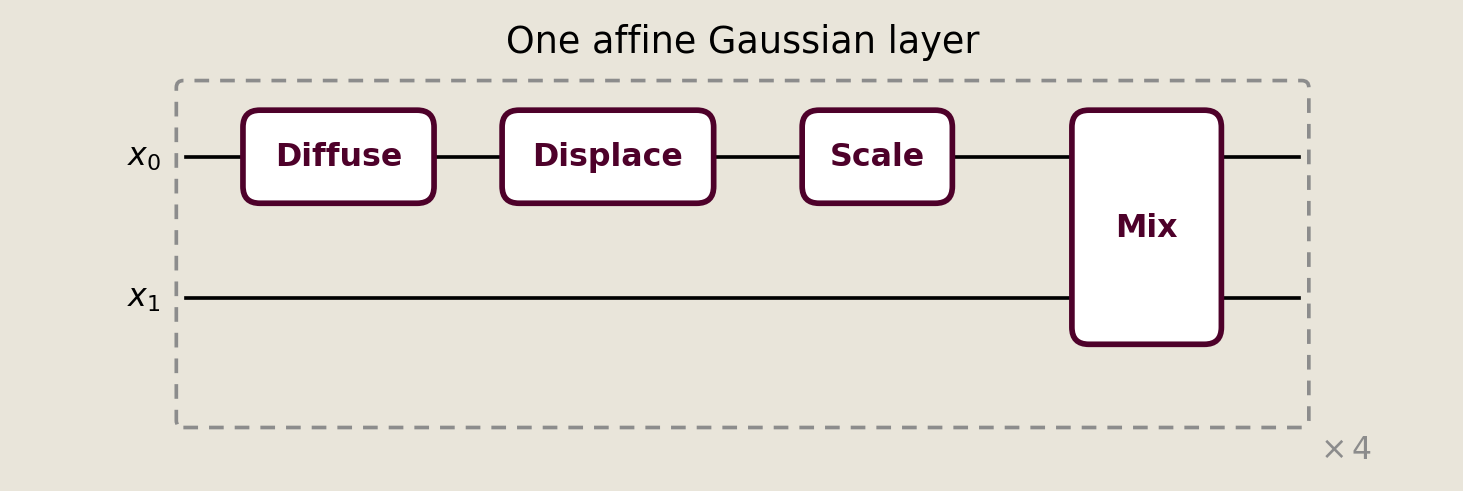

The schematic draws one layer, and all four repetitions reuse it unchanged, so the whole stack still composes to a single affine Gaussian map.
The effect of each gate¶
Each named gate touches one part of the moments, which is easiest to see one gate at a time.
Diffuse adds to $\Sigma$, so it broadens the cloud along $x_0$, and Scale multiplies site 0, so it stretches along that same axis. Displace adds to $\mu$, so it shifts the cloud without changing its shape, while Mix rotates the two sites and thereby correlates them.
To separate those four effects we apply each gate to the same input cloud and compare the sampled moments against that gate's analytic update. The print reports the largest mean and covariance error per gate, and the cell raises past its tolerance rather than reporting a mismatch quietly.
N_CLOUD = 3000
# An elongated input cloud so every gate's effect is visible, including the
# Mix rotation (a rotation does nothing to an isotropic cloud).
input_scale = np.array([1.45, 0.72])
diffusion = 2.1 # adds 2 * diffusion * dt to the x0 variance
disp_alpha = 2.6 # shifts the x0 mean
scale_r = float(jnp.log(1.9)) # stretches x0 by e^r
mix_angle = 0.62 # rotates the two sites into correlation
diff_theta_panel = jnp.log(jnp.array([2.0 * diffusion * dt]))
disp_theta_panel = jnp.array([disp_alpha])
scale_theta_panel = jnp.array([scale_r])
mix_angle_panel = jnp.asarray(mix_angle)
rng = np.random.default_rng(SEED)
cloud0 = (rng.standard_normal((N_CLOUD, 2)) * input_scale).astype(np.float32)
mu0, cov0 = _mean_cov(cloud0)
# Diffuse only changes the variance of the acted-on site.
diff_cloud = _sample_site0_gate(diff_gate, diff_theta_panel, cloud0, SEED + 10)
exp_cov = cov0.copy()
exp_cov[0, 0] += 2 * diffusion * dt
_assert_mean_cov_close(diff_cloud, mu0, exp_cov, "Diffuse", cov_atol=0.20)
disp_cloud = _sample_site0_gate(disp_gate, disp_theta_panel, cloud0, SEED + 11)
_assert_mean_cov_close(
disp_cloud,
mu0 + np.array([disp_alpha, 0.0]),
cov0,
"Displace",
)
scale_cloud = _sample_site0_gate(scale_gate, scale_theta_panel, cloud0, SEED + 12)
scale_mat = np.diag([np.exp(scale_r), 1.0])
_assert_mean_cov_close(
scale_cloud,
scale_mat @ mu0,
scale_mat @ cov0 @ scale_mat.T,
"Scale",
cov_atol=0.35,
)
cos_t, sin_t = np.cos(mix_angle), np.sin(mix_angle)
rot_mat = np.array([[cos_t, -sin_t], [sin_t, cos_t]])
mix_cloud = _sample_gate_cloud(mix_gate, mix_angle_panel, cloud0, SEED + 13)
_assert_mean_cov_close(
mix_cloud,
rot_mat @ mu0,
rot_mat @ cov0 @ rot_mat.T,
"Mix",
)
Diffuse: mean err 0.0324, cov err 0.1700 Displace: mean err 0.0000, cov err 0.0000 Scale: mean err 0.0000, cov err 0.0000 Mix: mean err 0.0000, cov err 0.0000
panels = [
("input", cloud0, None),
("after Diffuse (broadens)", diff_cloud, cloud0),
("after Displace (shifts)", disp_cloud, cloud0),
("after Scale (stretches)", scale_cloud, cloud0),
("after Mix (rotates)", mix_cloud, cloud0),
]
fig = P_fld.gate_sequence_clouds(panels, figsize=(7.2, 4.4))
savefig(fig, "10_pmode_gate_sequence")

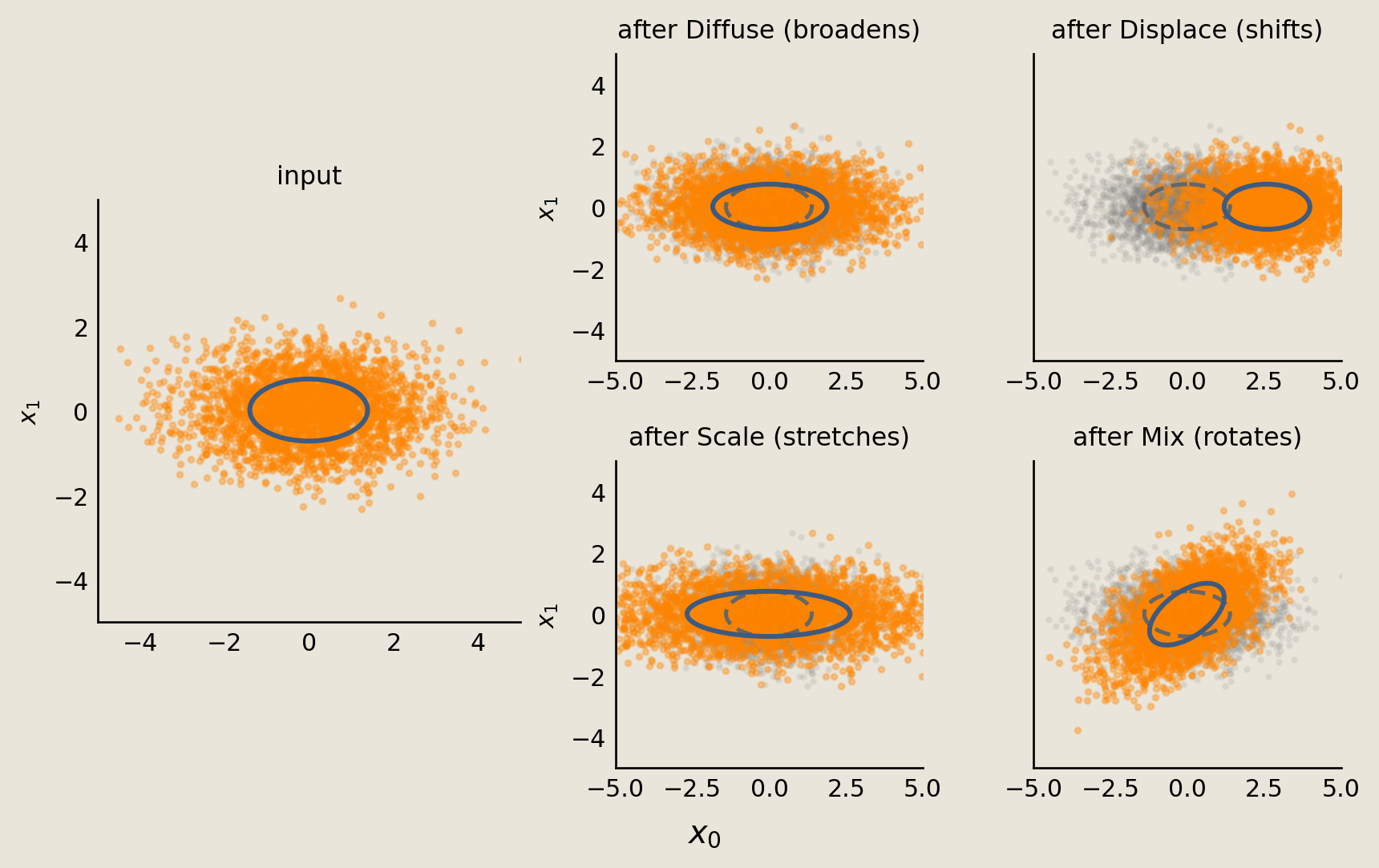

Every panel keeps the same input cloud underneath, faint and outlined with a dashed ellipse, so each deformation can be read against one reference: broaden, shift, stretch, and tilt into correlation.
Exact moment propagation¶
Sampling clouds is a useful sanity check on the gates, but because a stack of affine Gaussian gates is still one affine Gaussian map, we can carry the moments forward without drawing samples at all.
Affine propagates the mean and covariance analytically through the composed map, and for a Gaussian those two moments determine the density, so the propagated pair is the entire distribution.
affine_sim = AffineGaussianSimulator()
affine_compiled = affine_sim.build_circuit(step, step_thetas)
prior = affine_sim.propagate(affine_compiled, jnp.zeros(2))
print(f"prior mean: {np.array(prior.mean).tolist()}")
print("prior covariance:")
print(np.array(prior.covariance))
prior mean: [0.5207920670509338, 0.5835674405097961] prior covariance: [[0.5202335 0.46302444] [0.46302444 0.67771125]]
fig = P_fld.prior_joint_density(prior, figsize=(4.6, 4.0))
savefig(fig, "10_pmode_prior_density")
fig = P_fld.prior_marginals(prior, figsize=(6.2, 3.2))
savefig(fig, "10_pmode_prior_marginals")

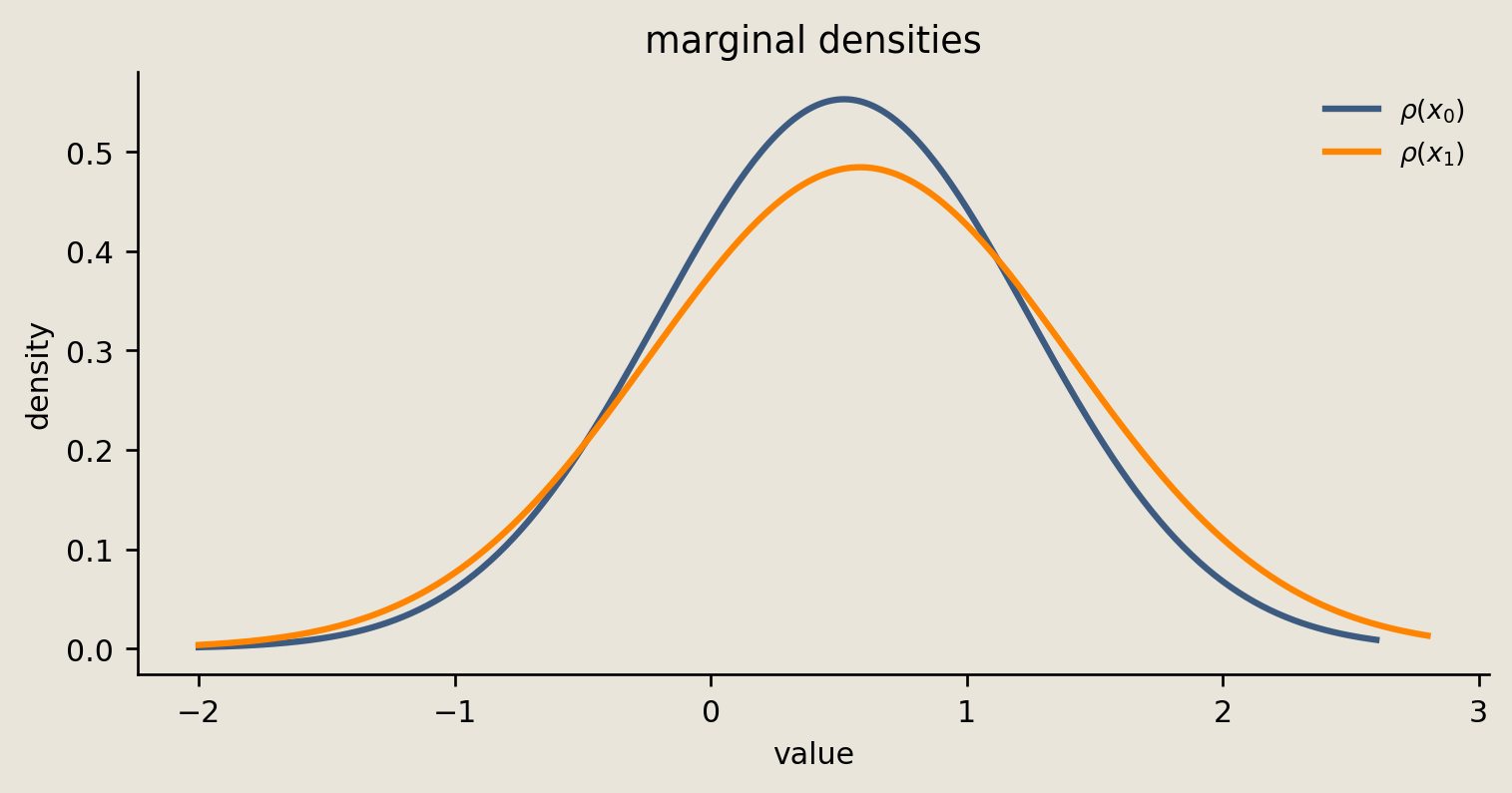

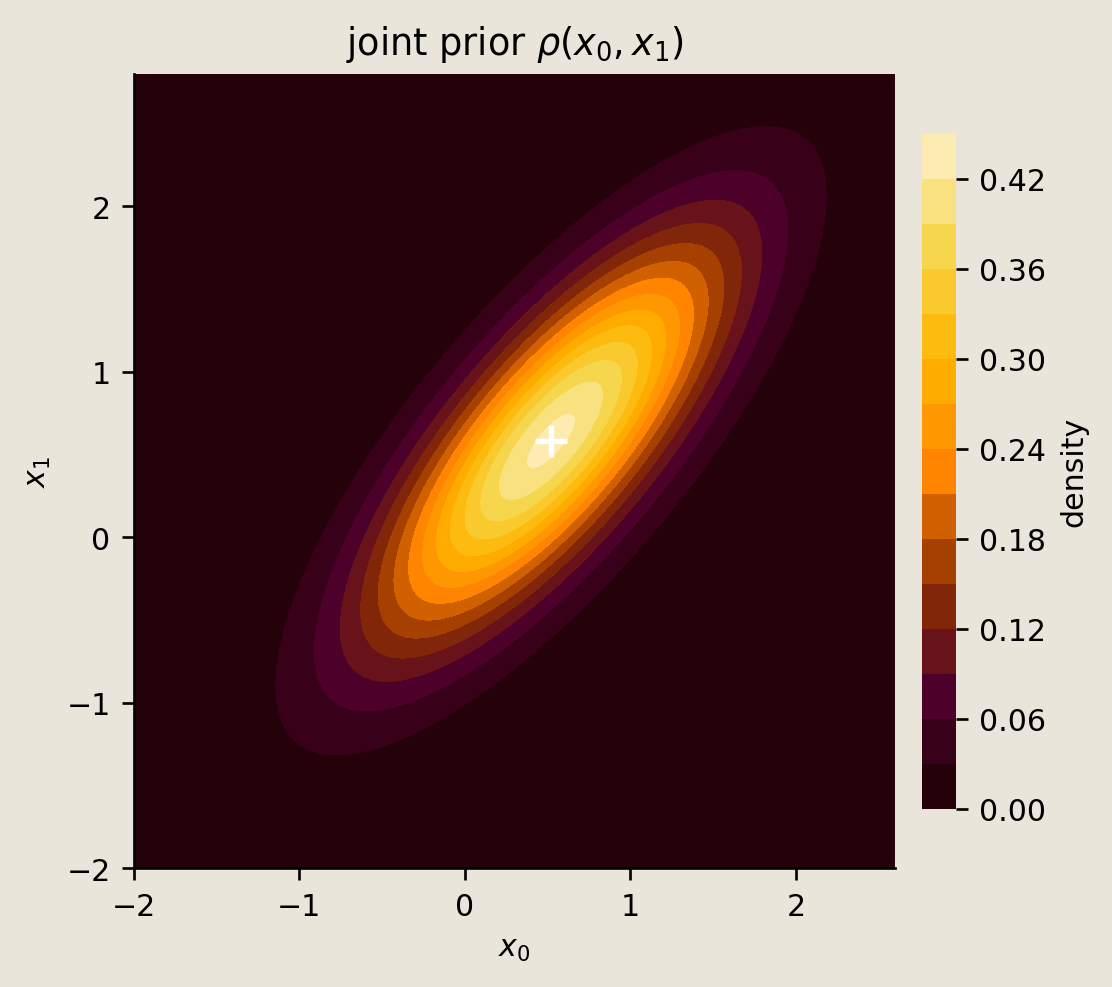

Both figures are computed from that one propagated mean and covariance; neither contains sampled points. The marked mean in the joint plot and the two one-dimensional marginals are therefore exact outputs of analytic propagation rather than finite-sample estimates.
Conditioning on one site¶
The Mix gate put off-diagonal entries into the covariance between site 0 and site 1, so the two sites are correlated and an observation of one changes the distribution of the other. For a Gaussian we can write that updated distribution down exactly.
Given an exact value $y_1$ for site 1, the Gaussian posterior on site 0 follows the Schur-complement identity in Petersen and Pedersen (2012):
$$ \mu_{0\mid 1} = \mu_0 + \Sigma_{01}\Sigma_{11}^{-1}(y_1 - \mu_1), \qquad \Sigma_{0\mid 1} = \Sigma_{00} - \Sigma_{01}\Sigma_{11}^{-1}\Sigma_{10}. $$
AffineGaussianSimulator.condition evaluates that identity at $y_1 = 0.35$, the value later named Y_OBS, and returns the point-conditioned posterior mean and covariance for site 0.
# Condition on site 1 and ask for the posterior over site 0.
posterior = affine_sim.condition(
affine_compiled,
observations={1: jnp.array([0.35])},
initial_continuous=jnp.zeros(2),
query_sites=[0],
)
prior_mu0 = float(prior.mean[0])
prior_sig0 = float(jnp.sqrt(prior.covariance[0, 0]))
post_mu0 = float(posterior.mean[0])
post_sig0 = float(jnp.sqrt(posterior.covariance[0, 0]))
print(f"prior site 0: mean = {prior_mu0:.4f}, std = {prior_sig0:.4f}")
print(f"post site 0: mean = {post_mu0:.4f}, std = {post_sig0:.4f}")
prior site 0: mean = 0.5208, std = 0.7213 post site 0: mean = 0.3612, std = 0.4515
assert float(posterior.covariance[0, 0]) < float(
prior.covariance[0, 0]
), "posterior variance did not narrow"
Monte Carlo comparison¶
The propagated moments are exact, so they provide a reference for the sampler.
HybridPCircuit.sample_multiple draws full trajectories, and empirical means and covariances approach their analytic values as the sample count grows (Metropolis and Ulam, 1949). At any finite sample count, however, the estimates fluctuate. We therefore compare each discrepancy with a tolerance scaled to the number of samples rather than requiring exact equality.
We draw 20,000 samples and check each empirical moment against a six-standard-error tolerance at this seed.
num_samples = 20_000
initial_state = {
"discrete": jnp.array([], dtype=jnp.int32),
"continuous": jnp.zeros(2),
}
samples = step.sample_multiple(
jax.random.key(SEED), initial_state, step_thetas, n_samples=num_samples
)["continuous"]
samples_np = np.asarray(samples)
sample_mean = jnp.mean(samples, axis=0)
sample_cov = jnp.asarray(np.cov(samples_np.T))
mean_error = float(jnp.max(jnp.abs(sample_mean - prior.mean)))
cov_error = float(jnp.max(jnp.abs(sample_cov - prior.covariance)))
print(f"analytic mean: {np.array(prior.mean).tolist()}")
print(f"sample mean: {np.array(sample_mean).tolist()}")
print(f"max mean error: {mean_error:.4f}")
print(f"max cov error: {cov_error:.4f}")
analytic mean: [0.5207920670509338, 0.5835674405097961] sample mean: [0.5317031741142273, 0.5874403119087219] max mean error: 0.0109 max cov error: 0.0021
prior_cov_np = np.asarray(prior.covariance)
mean_atol = 6.0 * np.sqrt(float(np.max(np.diag(prior_cov_np))) / num_samples)
cov_entry_se = np.sqrt(
(prior_cov_np**2 + np.outer(np.diag(prior_cov_np), np.diag(prior_cov_np)))
/ (num_samples - 1)
)
cov_atol = 6.0 * float(np.max(cov_entry_se))
# why: Monte Carlo moment error shrinks as 1/sqrt(num_samples).
np.testing.assert_allclose(np.array(sample_mean), np.array(prior.mean), atol=mean_atol)
np.testing.assert_allclose(np.array(sample_cov), prior_cov_np, atol=cov_atol)
exact_vals = np.array(
[
float(prior.mean[0]),
float(prior.mean[1]),
float(prior.covariance[0, 0]),
float(prior.covariance[0, 1]),
float(prior.covariance[1, 1]),
]
)
sample_vals = np.array(
[
float(sample_mean[0]),
float(sample_mean[1]),
float(sample_cov[0, 0]),
float(sample_cov[0, 1]),
float(sample_cov[1, 1]),
]
)
labels = [r"$\mu_0$", r"$\mu_1$", r"$\Sigma_{00}$", r"$\Sigma_{01}$", r"$\Sigma_{11}$"]
tolerances = np.array([mean_atol, mean_atol, cov_atol, cov_atol, cov_atol])
fig = P_samp.moment_parity(
exact_vals,
sample_vals,
labels,
tolerances,
num_samples,
figsize=(6.2, 5.2),
)
savefig(fig, "10_pmode_gaussian_moment_parity")

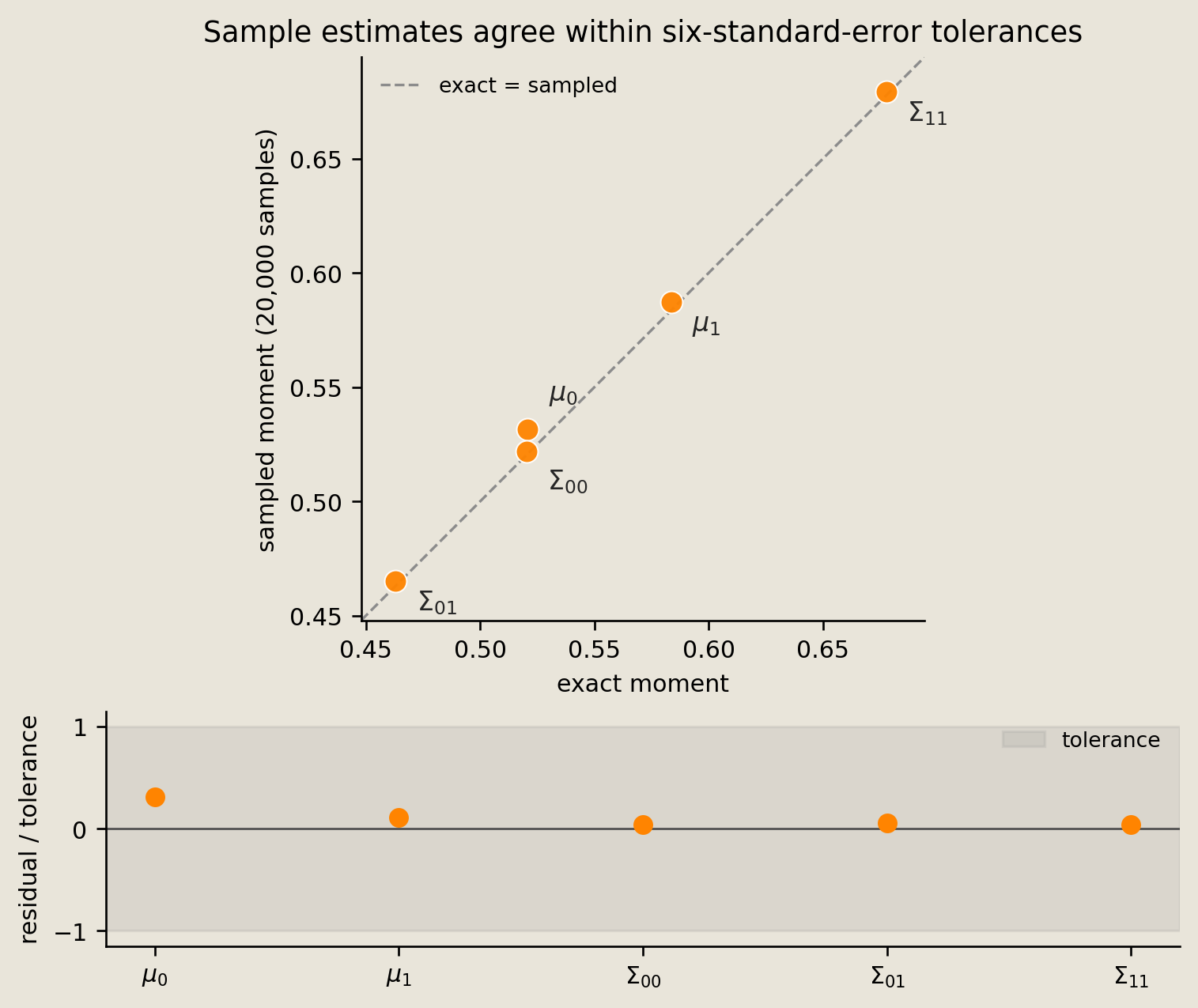

The lower panel reports each sample-minus-exact residual divided by its six-standard-error tolerance, and all five residuals stay inside the shaded band, so the sampler reproduces the exact moments to within Monte Carlo error at 20,000 samples.
Comparing the posterior to samples¶

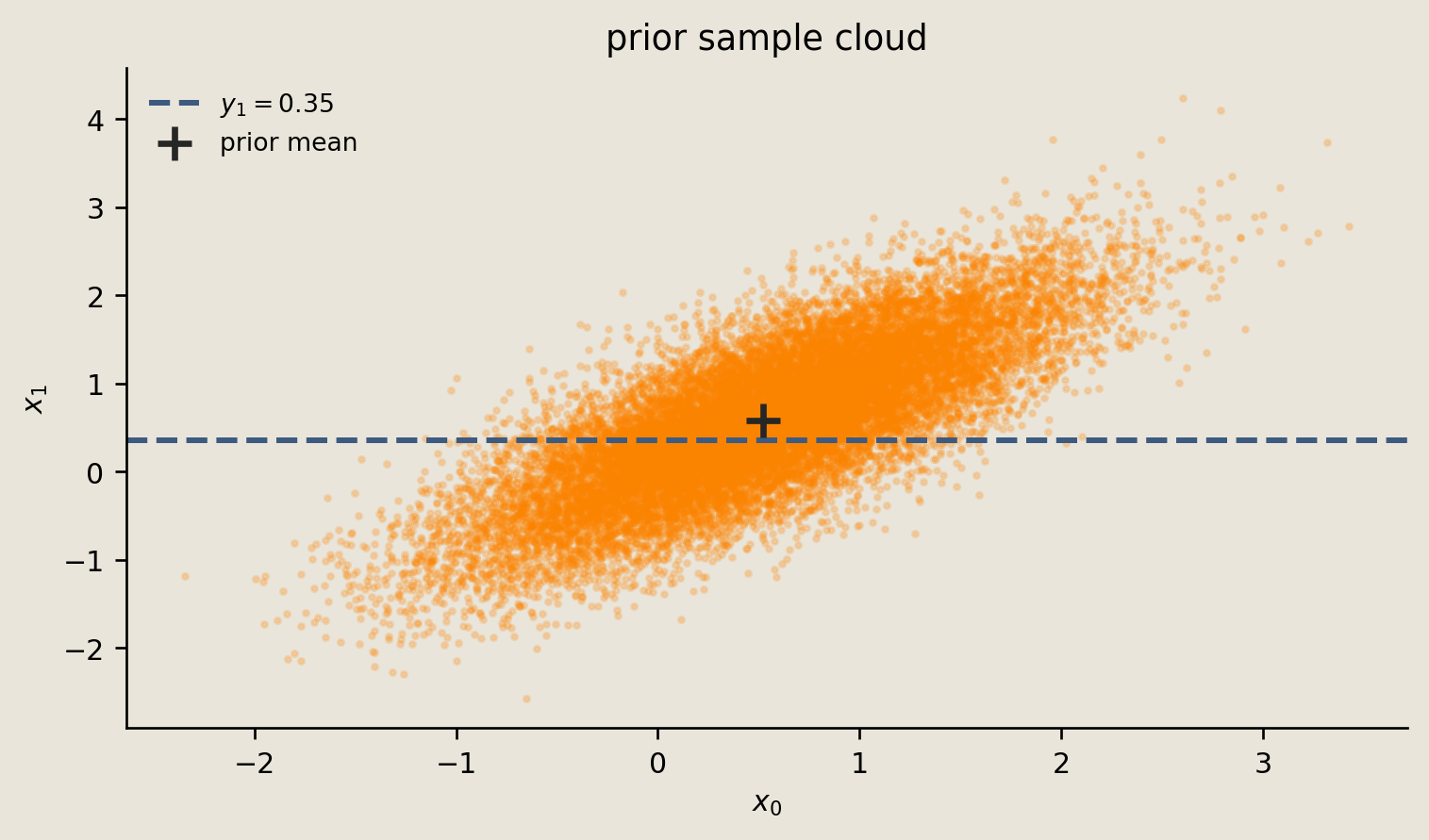

We now look for the same conditioning in the samples themselves. The first figure marks the prior mean and draws a dashed line at the exact observation $y_1 = 0.35$, which is the slice the posterior conditions on.

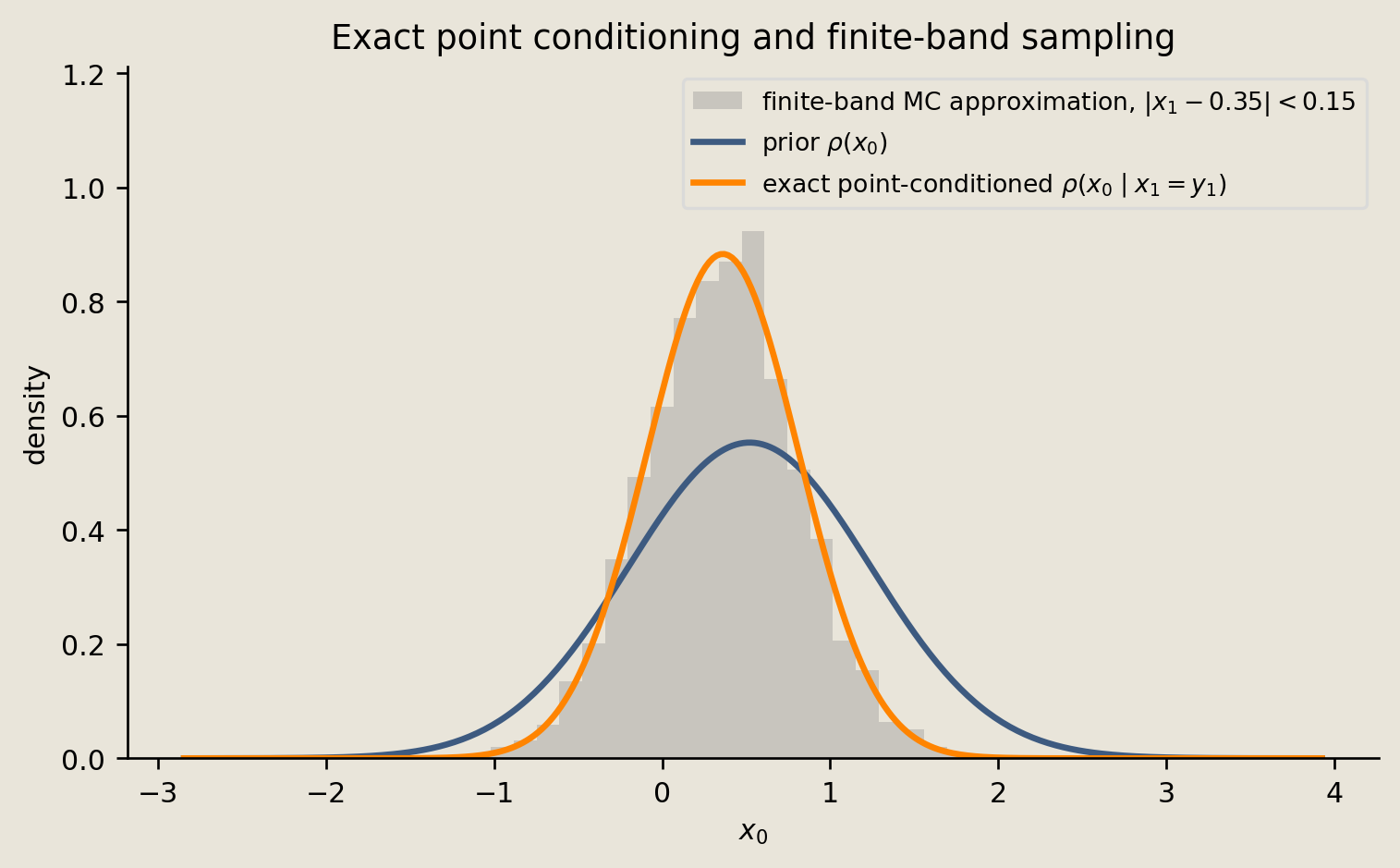

An exact point condition has zero width, so no finite set of samples falls on that line. Instead we keep the trajectories satisfying $|x_1 - Y_{\mathrm{OBS}}| < \mathrm{BAND}$ and histogram them in gray, which makes that narrow band the Monte Carlo stand-in for the exact conditional density over site 0.
BAND = 0.15
Y_OBS = 0.35
fig = P_fld.conditioning_cloud(samples_np, Y_OBS, prior, figsize=(6.2, 3.6))
savefig(fig, "10_pmode_gaussian_conditioning_cloud")
selected_count = int(np.count_nonzero(np.abs(samples_np[:, 1] - Y_OBS) < BAND))
print(
f"finite-band approximation selected {selected_count} / {num_samples} samples "
f"with |x1 - {Y_OBS:g}| < {BAND:g}"
)
fig = P_fld.conditioning_posterior(
prior,
posterior,
samples_np,
Y_OBS,
BAND,
figsize=(6.2, 3.8),
)
savefig(fig, "10_pmode_gaussian_conditioning_posterior")
finite-band approximation selected 2899 / 20000 samples with |x1 - 0.35| < 0.15
The exact posterior over site 0 is visibly narrower than the prior, and the band-selected histogram sits under it, so the samples support the narrowing that condition computed in closed form.
Mixtures: leaving the Gaussian family¶
Every gate so far has applied an affine map with Gaussian noise. These maps preserve Gaussian distributions, so producing a non-Gaussian density requires a different operation: a discrete choice among Gaussian components.
Mixture supplies that choice. It uses a pdit (a $d$-state discrete site) as a control to select one of K Gaussian components, then adds the selected component's mean and Gaussian noise to the current continuous value. Starting from $x=0$, marginalizing the control gives the mixture density
$$ \rho(x) = \sum_{k} \pi_k\,\mathcal{N}(x;\, \mu_k,\, \sigma_k^2), $$
which is no longer Gaussian.
The control needs a gate of its own. Pdit flips the pdit from 0 to 1 with a probability set by its log-odds theta; in this binary demonstration, that probability encodes the component weights.
The parameters are divided accordingly. Mixture carries the component means and log_vars, while the control distribution carries the weights $\pi_k$. The sampler below first draws the pdit control with the declared weights, then lets Mixture draw the component-conditioned Gaussian sample.
The notebook helper plot_mixture_density, from examples/helpers/_plots_fields.py, draws the figure and evaluates the exact PDF. It reads the gate's means and log_vars together with the separate control weights over a display grid, allowing the sampled histogram to be compared with the density specified by the same parameters.
This construction provides the non-Gaussian primitive used by the continuous arc. 13_regime_switching_diffusion.ipynb develops the full regime-switching process.
mix_means = jnp.array([[-1.5], [1.5]])
mix_log_vars = jnp.log(jnp.array([[0.25], [0.25]]))
mix_weights = jnp.array([0.5, 0.5])
n_components = mix_means.shape[0]
mog_gate = MixtureGaussianGate(
sites=(0, 0), # first entry: discrete control site; second: continuous site
dims=(1,),
num_components=n_components,
)
mog_theta = {"means": mix_means, "log_vars": mix_log_vars}
mix_weights_np = np.asarray(mix_weights, dtype=float)
if n_components != 2 or mix_weights_np.shape != (2,):
raise ValueError("this PditShift demo samples a binary mixture; use PditCycle or categorical controls for K > 2")
np.testing.assert_allclose(mix_weights_np.sum(), 1.0)
if np.any(mix_weights_np <= 0.0):
raise ValueError("PditShift log-odds need positive binary mixture weights")
# why: starting at control 0, PditShift reaches control 1 with probability mix_weights[1].
control_gate = PditShift(sites=0, dims=n_components)
control_theta = jnp.array([np.log(mix_weights_np[1] / mix_weights_np[0])], dtype=mix_means.dtype)
def sample_mixture(
mog_gate,
mog_theta,
control_gate,
control_theta,
seed,
num_samples=16_000,
):
"""Sample the control-then-mixture circuit; return continuous draws and control bits."""
mix_circuit = HybridPCircuit([control_gate, mog_gate])
init_state = {
"discrete": jnp.array([0], dtype=jnp.int32),
"continuous": jnp.zeros(1),
}
out = mix_circuit.sample_multiple(
jax.random.key(seed),
init_state,
[control_theta, mog_theta],
n_samples=num_samples,
)
return np.asarray(out["continuous"])[:, 0], np.asarray(out["discrete"])[:, 0]
num_mixture_samples = 16_000
mix_all, mix_labels = sample_mixture(
mog_gate,
mog_theta,
control_gate,
control_theta,
SEED + 500,
num_samples=num_mixture_samples,
)
mix_empirical_weights = np.bincount(mix_labels, minlength=n_components) / num_mixture_samples
weight_atol = 4.0 * np.sqrt(
float(np.max(mix_weights_np * (1.0 - mix_weights_np))) / num_mixture_samples
)
print(f"drawn pdit weights: {mix_empirical_weights.round(3).tolist()}")
np.testing.assert_allclose(mix_empirical_weights, mix_weights_np, atol=weight_atol)
drawn pdit weights: [0.505, 0.495]
mix_component_means = np.asarray(mix_means).reshape(-1)
mix_component_vars = np.exp(np.asarray(mix_log_vars).reshape(-1))
mix_mean_exact = float(np.dot(mix_weights_np, mix_component_means))
mix_var_exact = float(
np.dot(mix_weights_np, mix_component_vars + mix_component_means**2)
- mix_mean_exact**2
)
mean_atol = 4.0 * np.sqrt(mix_var_exact / num_mixture_samples)
var_rtol = 6.0 * np.sqrt(2.0 / (num_mixture_samples - 1))
# why: these are Monte Carlo checks on a sampled pdit control.
np.testing.assert_allclose(np.mean(mix_all), mix_mean_exact, atol=mean_atol)
np.testing.assert_allclose(np.var(mix_all), mix_var_exact, rtol=var_rtol)
fig = P_fld.plot_mixture_density(
mix_all, mix_means, mix_log_vars, mix_weights, figsize=(6.2, 4.0)
)
savefig(fig, "10_pmode_mixture_density")

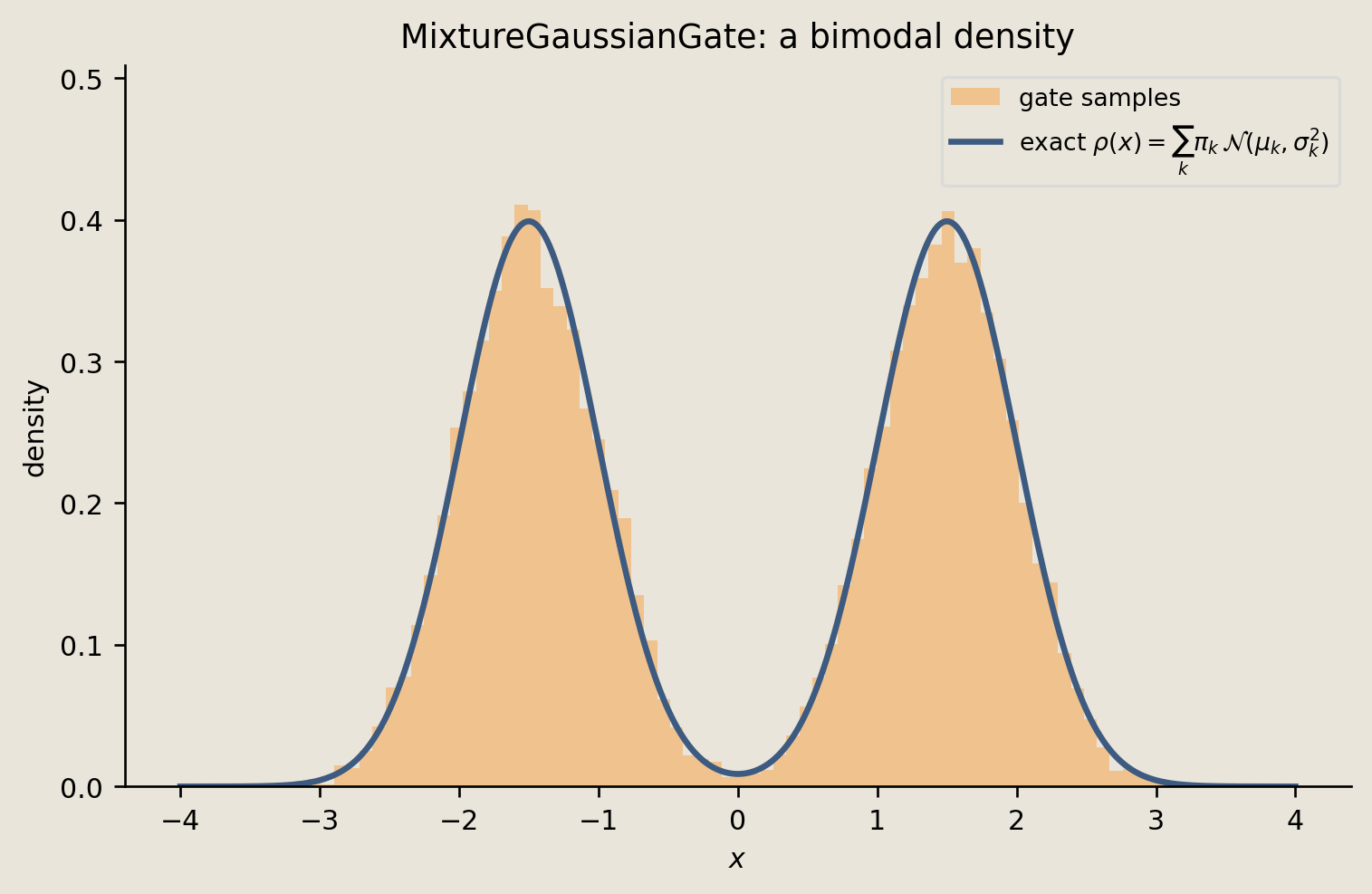

The sampled histogram is bimodal and follows the exact two-component mixture curve, so the discrete control has taken this continuous site out of the Gaussian family.
Conclusion¶
We built the pmode Gaussian gate set and checked it three ways: sampled point clouds, exact moment propagation, and closed-form conditioning.
Affine is the general continuous gate, and Displace, Scale, Mix, and Diffuse are specialized affine Gaussian maps for common cases. Because stacks of these gates remain affine Gaussian, Affine can propagate moments exactly without sampling.
The sampled moments from HybridPCircuit.sample_multiple agree with those exact moments inside their six-standard-error Monte Carlo tolerances at 20,000 samples. The condition method gives the exact point-conditioned Gaussian posterior, while the separately labeled finite-band sample selection approximates that same curve from trajectories. Finally, Mixture adds a discrete control and produces a mixture density, so the model can leave the Gaussian family.
To continue, see 11_gaussian_hierarchical_ssm.ipynb for the Kalman and Rauch-Tung-Striebel (RTS) smoother, and 13_regime_switching_diffusion.ipynb for the regime-switching mixture process.
References¶
- Petersen, K.B., Pedersen, M.S. 2012. The Matrix Cookbook. Technical University of Denmark.
- Einstein, A. 1905. On the movement of small particles suspended in stationary liquids required by the molecular-kinetic theory of heat. Annalen der Physik 17, 549-560.
- Metropolis, N., Ulam, S. 1949. The Monte Carlo method. Journal of the American Statistical Association 44(247), 335-341.
